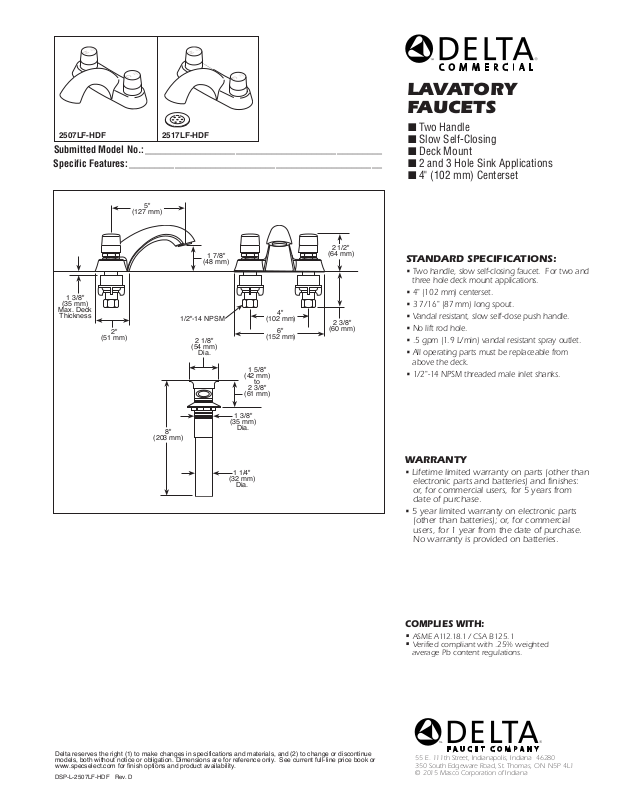

LAVATORY
FAUCETS
2507LF-HDF
2517LF-HDF
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
5"
(127 mm)
2 1/2"
(64 mm)
2 3/8"
(60 mm)
1 3/8"
(35 mm)
Max. Deck
Thickness
2"
(51 mm)
8"
(203 mm)
1 7/8"
(48 mm)
1/2"-14 NPSM
2 1/8"
(54 mm)
Dia.
(42 mm)
(61 mm)
1 3/8"
(35 mm)
Dia.
1 5/8"
to
2 3/8"
4"
(102 mm)
6"
(152 mm)
■ Two Handle
■ Slow Self-Closing
■ Deck Mount
■ 2 and 3 Hole Sink Applications
■ 4" (102 mm) Centerset
STANDARD SPECIFICATIONS:
• Two handle, slow self-closing faucet. For two and
three hole deck mount applications.
• 4" (102 mm) centerset.
• 3 7/16" (87 mm) long spout.
• Vandal resistant, slow self-close push handle.
• No lift rod hole.
• .5 gpm (1.9 L/min) vandal resistant spray outlet.
• All operating parts must be replaceable from
above the deck.
• 1/2"-14 NPSM threaded male inlet shanks.
1 1/4"
(32 mm)
Dia.
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.specselect.com for finish options and product availability.
DSP-L-2507LF-HDF Rev. D
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
Verified compliant with .25% weighted
average Pb content regulations.
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2015 Masco Corporation of Indiana
