= Adjustable H2Okinetic™ Spray (AH2O)
= Soft Full Spray (SF)
= Shampoo Rinsing Spray (SR)
= Shampoo Rinsing
Spray
w/Massage (SRM)
=
Full Spray w/Massage (FSM)
= High-Efficiency Spray (HE)
= Crossing Full Spray (CF)
= Crossing Full Spray w/Massage (CFM)
= Fast Massage (FM)
= Soft Drench w/Full Spray (SDF)
= Soft Drench Spray (SD)
= Pause (P)
= Full Body Spray (FB)
= Adjustable Full Spray (AF)
SR
CF
CFM
HE
SDF
AF
SRM
SF
FB
SD
P
FSM
FM
= Massage Spray (M)
M
= Slow Massage (SM)
SM
= H
2
Okinetic™ Spray (H2O)
H
2
O
= Soft Drench Spray w/Massage (SDM)
SDM
AH
2
O
= Pause (P)
P
= Adjustable H2Okinetic™ Spray (AH2O)
= Soft Full Spray (SF)
= Crossing Full Spray (CF)
= Crossing Full Spray w/Massage (CFM)
= Soft Drench Spray (SD)
= Pause (P)
= Full Body Spray (FB)
= Adjustable Full Spray (AF)
CF
CFM
AF
SF
FB
SD
P
= Massage Spray (M)
M
= Slow Massage (SM)
SM
AH
2
O
T17052▲
T17252▲
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
7"
(178 mm)
8" (203 mm)
min.
18" (457 mm)
max.
▲ Designate Proper Finish Suffix
RP78735▲ (Pull-Up Diverter)
2 13/16"
(71 mm)
RP78736▲ (Non Diverter)
5 1/2"
(140 mm)
5 1/2"
(140 mm)
2 13/16"
(71 mm)
T17452▲
Face of plasterguard
should be flush with
finish wall line
52690▲ 2.0 GPM H2O Showerhead
Full Body
Spray
H2Okinetic
Spray
Pause
2 3/4" (70mm)
3 7/16"
(87 mm)

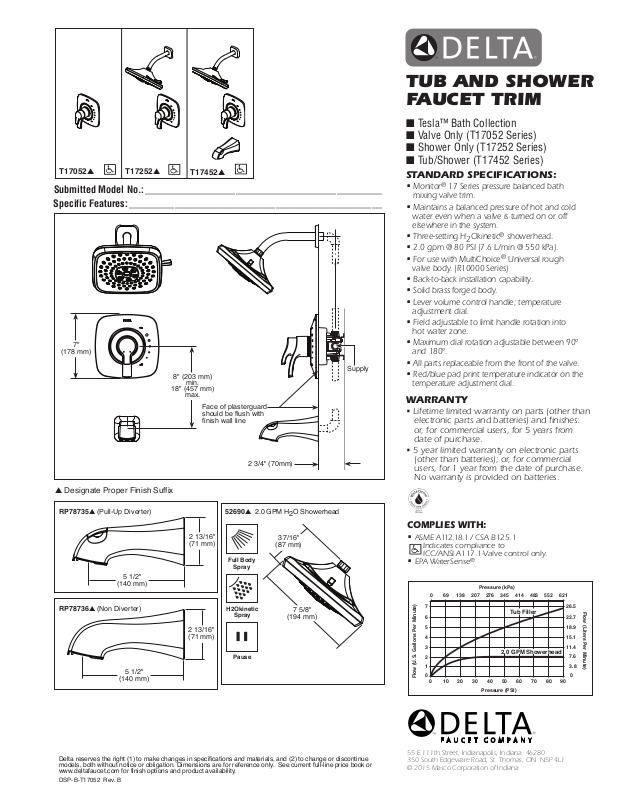

TUB AND SHOWER
FAUCET TRIM
■ Tesla™ Bath Collection
■ Valve Only (T17052 Series)
■ Shower Only (T17252 Series)
■ Tub/Shower (T17452 Series)
STANDARD SPECIFICATIONS:
•
Monitor® 17 Series pressure balanced bath
mixing valve trim.
•
Maintains a balanced pressure of hot and cold
water even when a valve is turned on or off
elsewhere in the system.
•
Three-setting H2Okinetic® showerhead.
•
2.0 gpm @ 80 PSI (7.6 L/min @ 550 kPa).
•
For use with MultiChoice® Universal rough
valve body. (R10000 Series)
•
Back-to-back installation capability.
•
Solid brass forged body.
•
Lever volume control handle; temperature
adjustment dial.
•
Field adjustable to limit handle rotation into
hot water zone.
•
Maximum dial rotation adjustable between 90º
and 180º.
•
Supply
7 5/8"
(194 mm)
All parts replaceable from the front of the valve.
•
Red/blue pad print temperature indicator on the
temperature adjustment dial.
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
Indicates compliance to
ICC/ANSI A117.1-Valve control only.
•
EPA WaterSense
069 138 207 276 345 414 483 552 621
7
6
5
4
3
2
1
0
Flow (U.S. Gallons Per Minute)
0102030405060708090
®
Pressure (kPa)
Pressure (PSI)
Tub Filler
2.0 GPM Showerhead
26.5
Flow (Liters Per Minute)
22.7
18.9
15.1
11.4
7.6
3.8
0
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T17052 Rev. B
55 E 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2015 Masco Corporation of Indiana
