T14053s
T14253s
T14453s
T14253-
sH2O
T14453-
sH2O
T14253LHD
T14453LHD

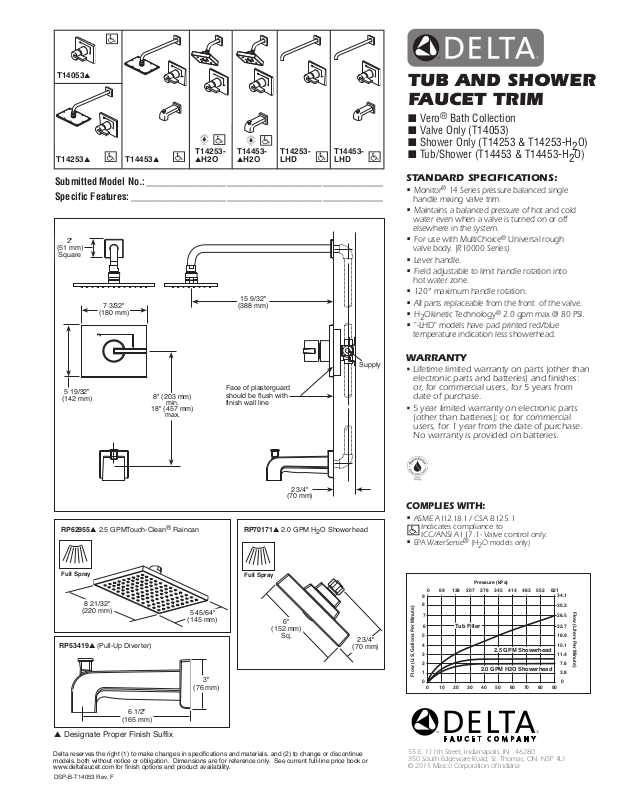

TUB AND SHOWER
FAUCET TRIM
■ Vero® Bath Collection
■ Valve Only (T14053)
■ Shower Only (T14253 & T14253-H2O)
■ Tub/Shower (T14453 & T14453-H2O)
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
2"
(51 mm)
Square
15 9/32"
(388 mm)
Face of plasterguard
should be flush with
finish wall line
Supply
5 19/32"
(142 mm)
7 3/32"
(180 mm)
8" (203 mm)
min.
18" (457 mm)
max.
STANDARD SPECIFICATIONS:
•
Monitor® 14 Series pressure balanced single
handle mixing valve trim.
•
Maintains a balanced pressure of hot and cold
water even when a valve is turned on or off
elsewhere in the system.
•
For use with MultiChoice® Universal rough
valve body. (R10000 Series)
•
Lever handle.
•
Field adjustable to limit handle rotation into
hot water zone.
•
120° maximum handle rotation.
•
All parts replaceable from the front of the valve.
•
H2Okinetic Technology® 2.0 gpm max @ 80 PSI.
•
"-LHD" models have pad printed red/blue
temperature indication less showerhead.
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
2 3/4"
(70 mm)
RP62955s 2.5 GPMTouch-Clean® Raincan
Full Spray
8 21/32"
(220 mm)
RP53419s (Pull-Up Diverter)
6 1/2"
(165 mm)
5 45/64"
(145 mm)
3"
(76 mm)
RP70171s 2.0 GPM H2O Showerhead
Full Spray
6"
(152 mm)
Sq.
2 3/4"
(70 mm)
s Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T14053 Rev. F
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
Indicates compliance to
ICC/ANSI A117.1- Valve control only.
•
EPA WaterSense® (H2O models only)
069 138 207 276 345 414 483 552 621
9
8
7
6
5
4
3
2
1
Flow (U.S. Gallons Per Minute)
0
0102030405060708090
55 E. 111th Street, Indianapolis, IN 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2015 Masco Corporation of Indiana
Pressure (kPa)
Tub Filler
2.5 GPM Showerhead
2.0 GPM H2O Showerhead
34.1
30.3
Flow (Liters Per Minute)
26.5
22.7
18.9
15.1
11.4
7.6
3.8
0
