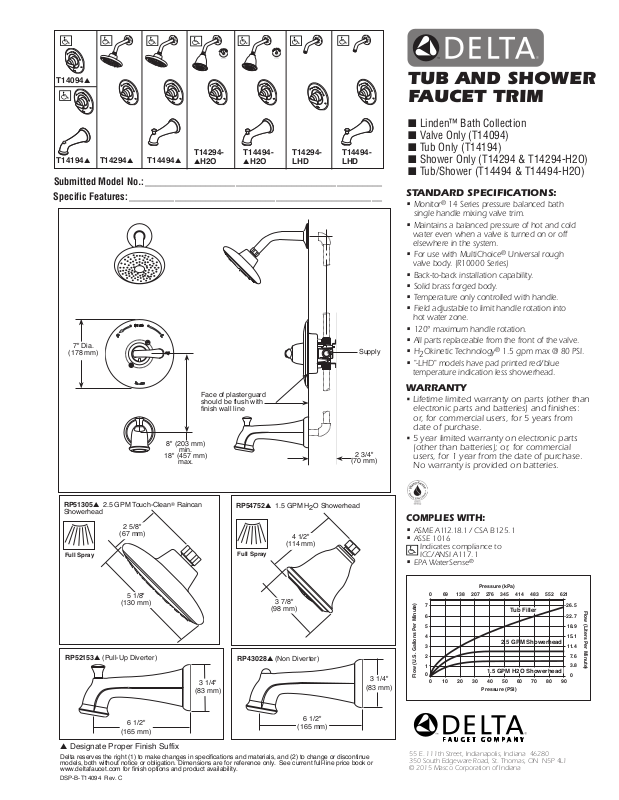

Page 1
T14094▲
T14194▲
T14294▲ T14494▲
T14294-
▲H2O
T14494-
▲H2O
T14294LHD
T14494LHD
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
DELTA
7" Dia.
(178 mm)
8" (203 mm)
min.
18" (457 mm)
max.
Face of plasterguard
should be flush with
finish wall line
Supply
2 3/4"
(70 mm)
TUB AND SHOWER
FAUCET TRIM
■ Linden™ Bath Collection
■ Valve Only (T14094)
■ Tub Only (T14194)
■ Shower Only (T14294 & T14294-H2O)
■ Tub/Shower (T14494 & T14494-H2O)
STANDARD SPECIFICATIONS:
•
Monitor® 14 Series pressure balanced bath
single handle mixing valve trim.
•
Maintains a balanced pressure of hot and cold
water even when a valve is turned on or off
elsewhere in the system.
•
For use with MultiChoice® Universal rough
valve body. (R10000 Series)
•
Back-to-back installation capability.
•
Solid brass forged body.
•
Temperature only controlled with handle.
•
Field adjustable to limit handle rotation into
hot water zone.
•
120° maximum handle rotation.
•
All parts replaceable from the front of the valve.
•
H2Okinetic Technology® 1.5 gpm max @ 80 PSI.
•
"-LHD" models have pad printed red/blue
temperature indication less showerhead.
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
RP51305▲ 2.5 GPM Touch-Clean® Raincan
Showerhead
2 5/8"
(67 mm)
Full Spray
5 1/8"
(130 mm)
RP52153▲ (Pull-Up Diverter)
(83 mm)
6 1/2"
(165 mm)
3 1/4"
RP54752▲ 1.5 GPM H2O Showerhead
4 1/2"
Full Spray
RP43028▲ (Non Diverter)
(114 mm)
3 7/8"
(98 mm)
6 1/2"
(165 mm)
(83 mm)
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T14094 Rev. C
3 1/4"
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASSE 1016
Indicates compliance to
ICC/ANSI A117.1
•
EPA WaterSense
069 138 207 276 345 414 483 552 621
7
6
5
4
3
2
1
0
Flow (U.S. Gallons Per Minute)
0102030405060708090
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2015 Masco Corporation of Indiana
®
Pressure (kPa)
Tub Filler
2.5 GPM Showerhead
1.5 GPM H2O Showerhead
Pressure (PSI)
26.5
Flow (Liters Per Minute)
22.7
18.9
15.1
11.4
7.6
3.8
0
