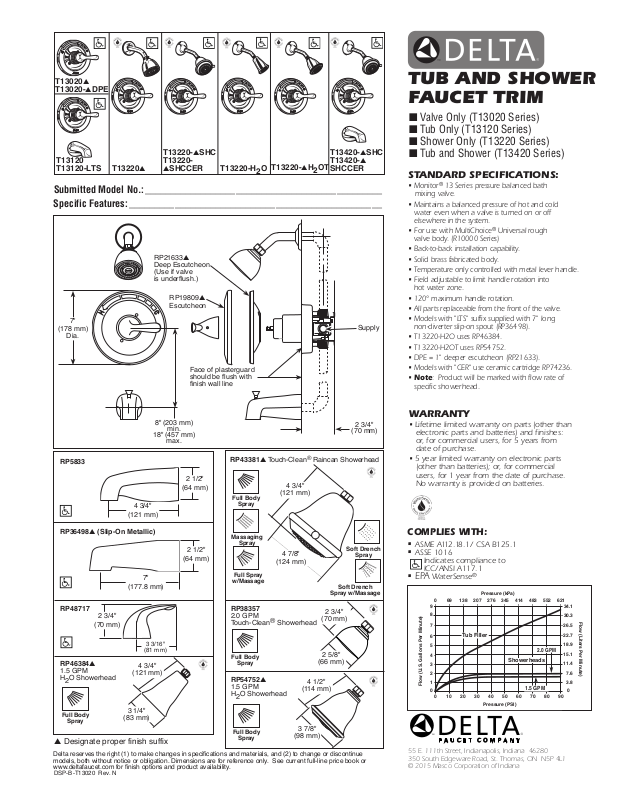

T13020▲
S
G
T13020-▲DPE
T13120
T13120-LTS
T13220▲
T13220-▲SHC
T13220-
▲SHCCER
T13220-H2O
T13220-▲H2OT
T13420-▲SHC
T13420-▲
SHCCER
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
RP21633▲
Deep Escutcheon
(Use if valve
is underflush.)
RP19809▲
Escutcheon
7"
(178 mm)
Dia.
Face of plasterguard
should be flush with
finish wall line
Supply
TUB AND SHOWER
FAUCET TRIM
■ Valve Only (T13020 Series)
■ Tub Only (T13120 Series)
■ Shower Only (T13220 Series)
■ Tub and Shower (T13420 Series)
STANDARD SPECIFICATIONS:
• Monitor® 13 Series pressure balanced bath
mixing valve.
• Maintains a balanced pressure of hot and cold
water even when a valve is turned on or off
elsewhere in the system.
• For use with MultiChoice® Universal rough
valve body. (R10000 Series)
• Back-to-back installation capability.
• Solid brass fabricated body.
• Temperature only controlled with metal lever handle.
• Field adjustable to limit handle rotation into
hot water zone.
• 120° maximum handle rotation.
• All parts replaceable from the front of the valve.
• Models with "LTS" suffix supplied with 7" long
non-diverter slip-on spout (RP36498).
• T13220-H2O uses RP46384.
• T13220-H2OT uses RP54752.
• DPE = 1" deeper escutcheon (RP21633).
• Models with "CER" use ceramic cartridge RP74236.
• Note: Product will be marked with flow rate of
specific showerhead.
8" (203 mm)
min.
18" (457 mm)
max.
RP5833
2 1/2"
(64 mm)
4 3/4"
(121 mm)
RP36498▲ (Slip-On Metallic)
2 1/2"
(64 mm)
7"
(177.8 mm)
RP48717
RP46384▲
1.5 GPM
H2O Showerhead
Full Body
Spray
2 3/4"
(70 mm)
4 3/4"
(121 mm)
3 1/4"
(83 mm)
3 3/16"
(81 mm)
▲ Designate proper finish suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T13020 Rev. N
RP43381▲ Touch-Clean® Raincan Showerhead
4 3/4"
Full Body
Spray
Massaging
Spray
Full Spray
w/Massage
RP38357
2.0 GPM
Touch-Clean® Showerhead
Full Body
Spray
RP54752▲
1.5 GPM
H2O Showerhead
Full Body
Spray
(121 mm)
4 7/8"
(124 mm)
(98 mm)
4 1/2"
(114 mm)
3 7/8"
(70 mm)
2 5/8"
(66 mm)
2 3/4"
(70 mm)
Soft Drench
Spray
Soft Drench
Spray w/Massage
2 3/4"
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASSE 1016
Indicates compliance to
ICC/ANSI A117.1
• EPA
WaterSense
0 69 138 207 276 345 414 483 552 621
9
8
7
6
5
4
allons Per Minute)
.
3
2
1
Flow (U.
0
0 10 20 30 40 50 60 70 80 90
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2015 Masco Corporation of Indiana
®
Tub Filler
Pressure (kPa)
Pressure (PSI)
Showerheads
1.5 GPM
2.0 GPM
34.1
30.3
26.5
22.7
18.9
15.1
11.4
7.6
3.8
0
Flow (Liters Per Minute)
