Submitted Model No.:
Specific Features:
7 1/8"
(181 mm)
2"
(51 mm)
1 3/5"
(35 mm)
2 1/8"
(54 mm)
Dia.
3 1/2"
(89 mm)
4 5/8"
(118 mm)
B510LF▲/B510LF-PPU▲B501LF▲
Min. 2 1/2" (64 mm)
Clearance to Back Splash
Recommended
2 1/8"
(54 mm)
1 1/4"
(32 mm)
Max. Desk
Thickness
4 1/4"
(108 mm)
1 5/8"
(42 mm)
to
2 3/8"
(61 mm)
2 5/8"
(67 mm)
3 1/2"
(89 mm)
1 3/8"
(35 mm)
Dia.
1/4" (6.35 mm)
O.D. Copper
Tubing
3 1/2"
(89 mm)
4 7/8"
(124 mm)
6 1/8"
(156 mm)
1/4"
(6 mm)
2 X 1 1/8"~1 1/2"
(29~38 mm)
Hole Size
4"
(102 mm)
Centers
2 1/8"
(54 mm)
Dia.
1 5/8"
(42 mm)
2 3/8"
(61 mm)
1 3/4"
(44 mm)
1/2"-14 NPSM
to

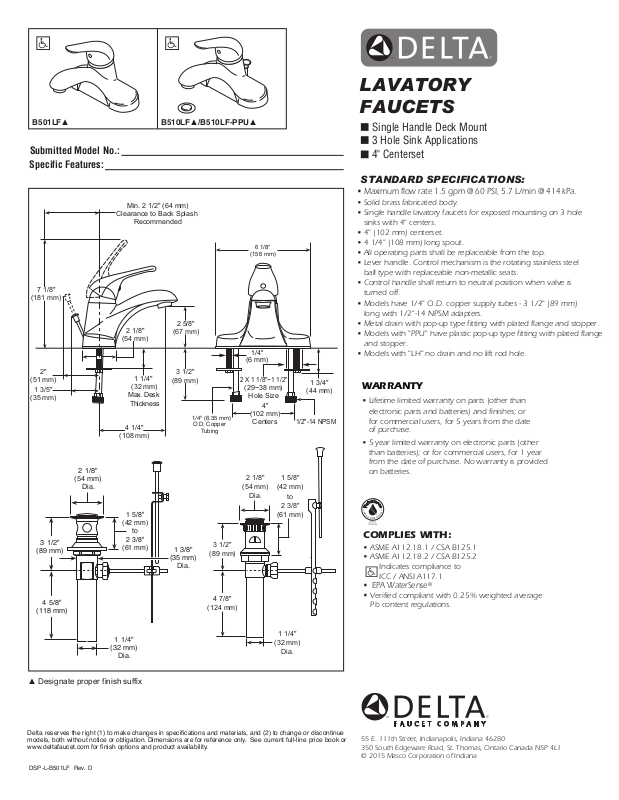

LAVATORY
FAUCETS
Single Handle Deck Mount
3 Hole Sink Applications
4" Centerset
STANDARD SPECIFICATIONS:
• Maximum flow rate 1.5 gpm @ 60 PSI, 5.7 L/min @ 414 kPa.
• Solid brass fabricated body.
• Single handle lavatory faucets for exposed mounting on 3 hole
sinks with 4" centers.
• 4" (102 mm) centerset.
• 4 1/4" (108 mm) long spout.
• All operating parts shall be replaceable from the top.
• Lever handle. Control mechanism is the rotating stainless steel
ball type with replaceable non-metallic seats.
• Control handle shall return to neutral position when valve is
turned off.
• Models have 1/4" O.D. copper supply tubes - 3 1/2" (89 mm)
long with 1/2"-14 NPSM adapters.
• Metal drain with pop-up type fitting with plated flange and stopper.
• Models with "PPU" have plastic pop-up type fitting with plated flange
and stopper.
• Models with "LH" no drain and no lift rod hole.
WARRANTY
• Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes; or
for commercial users, for 5 years from the date
of purchase.
• 5 year limited warranty on electronic parts (other
than batteries); or for commercial users, for 1 year
from the date of purchase. No warranty is provided
on batteries.
COMPLIES WITH:
• ASME A112.18.1 / CSA B125.1
• ASME A112.18.2 / CSA B125.2
Indicates compliance to
ICC / ANSI A117.1
• EPA WaterSense®
•
Verified compliant with 0.25% weighted average
Pb content regulations.
1 1/4"
(32 mm)
Dia.
1 1/4"
(32 mm)
Dia.
▲ Designate proper finish suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-L-B501LF Rev. D
