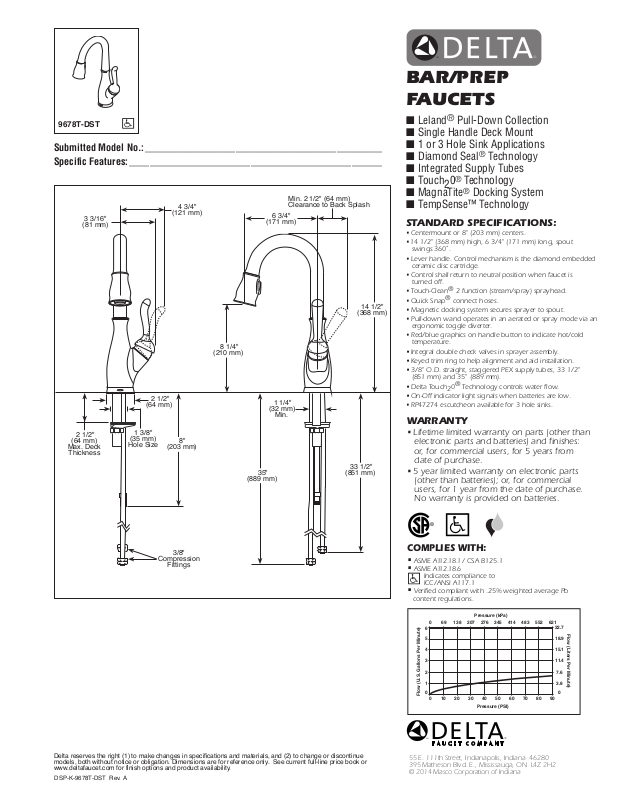

BAR/PREP
0
1
2
3
4
5
0102030405060708090
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
069 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow (Liters Per Minute)
®
FAUCETS
9678T-DST
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
Min. 2 1/2" (64 mm)
Clearance to Back Splash
6 3/4"
(171 mm)
1 1/4"
(32 mm)
Min.
14 1/2"
(368 mm)
33 1/2"
(851 mm)
3 3/16"
(81 mm)
2 1/2"
(64 mm)
Max. Deck
Thickness
2 1/2"
(64 mm)
1 3/8"
(35 mm)
Hole Size
4 3/4"
(121 mm)
8"
(203 mm)
8 1/4"
(210 mm)
35"
(889 mm)
■ Leland® Pull-Down Collection
■ Single Handle Deck Mount
■ 1 or 3 Hole Sink Applications
■ Diamond Seal® Technology
■ Integrated Supply Tubes
■ Touch20® Technology
■ MagnaTite® Docking System
■ TempSense™ Technology
STANDARD SPECIFICATIONS:
•
Centermount or 8" (203 mm) centers.
•
14 1/2" (368 mm) high, 6 3/4" (171 mm) long, spout
swings 360˚.
•
Lever handle. Control mechanism is the diamond embedded
ceramic disc cartridge.
•
Control shall return to neutral position when faucet is
turned off.
•
Touch-Clean® 2 function (stream/spray) sprayhead.
•
Quick Snap® connect hoses.
•
Magnetic docking system secures sprayer to spout.
•
Pull-down wand operates in an aerated or spray mode via an
ergonomic toggle diverter.
•
Red/blue graphics on handle button to indicate hot/cold
temperature.
• Integral double check valves in sprayer assembly.
• Keyed trim ring to help alignment and aid installation.
• 3/8" O.D. straight, staggered PEX supply tubes, 33 1/2"
(851 mm) and 35" (889 mm).
• Delta Touch
• On-Off indicator light signals when batteries are low.
•
RP47274 escutcheon available for 3 hole sinks.
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
0® Technology controls water flow.
2
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-K-9678T-DST Rev. A
3/8"
Compression
Fittings
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASME A112.18.6
Indicates compliance to
ICC/ANSI A117.1
•
Verified compliant with .25% weighted average Pb
content regulations.
55 E. 111th Street, Indianapolis, Indiana 46280
395 Matheson Blvd. E., Mississauga, ON L4Z 2H2
© 2014 Masco Corporation of Indiana
