T14178-
(
G
(
)
®
▲-LHP
T14278▲-LHP
T14278-▲
SHCCER
T14278H2OT▲-LHP
T14478▲-LHP
T14478-▲
SHCCER
T14478H2OT▲-LHP
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
7"
(178 mm)
Dia.
Face of plasterguard
should be flush with
finish wall line
Supply

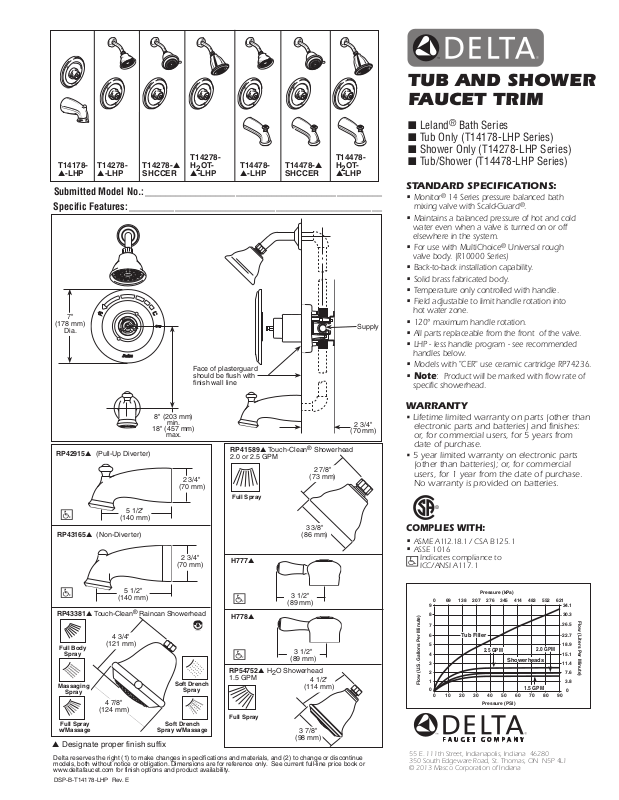

Tub AND SHOWER
FAuCET TRIM
■ Leland® Bath Series
■ Tub Only (T14178-LHP Series)
■ Shower Only (T14278-LHP Series)
■ Tub/Shower (T14478-LHP Series)
STANDARD SPECIFICATIONS:
•
Monitor® 14 Series pressure balanced bath
mixing valve with Scald-Guard®.
•
Maintains a balanced pressure of hot and cold
water even when a valve is turned on or off
elsewhere in the system.
•
For use with MultiChoice® Universal rough
valve body. (R10000 Series)
•
Back-to-back installation capability.
•
Solid brass fabricated body.
•
Temperature only controlled with handle.
•
Field adjustable to limit handle rotation into
hot water zone.
•
120° maximum handle rotation.
•
All parts replaceable from the front of the valve.
•
LHP - less handle program - see recommended
handles below.
•
Models with "CER" use ceramic cartridge RP74236.
• Note:
specific showerhead.
Product will be marked with flow rate of
WARRANTy
8" (203 mm)
min.
18" (457 mm)
max.
RP42915▲ (Pull-Up Diverter)
2 3/4"
(70 mm)
5 1/2"
(140 mm)
RP43165▲ (Non-Diverter)
2 3/4"
(70 mm)
5 1/2"
(140 mm)
4 3/4"
(121 mm)
4 7/8"
®
Raincan Showerhead
Soft Drench
Spray
Soft Drench
Spray w/Massage
RP43381▲ Touch-Clean
Full Body
Spray
Massaging
Spray
(124 mm)
Full Spray
w/Massage
▲ Designate proper finish suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T14178-LHP Rev. E
RP41589▲ Touch-Clean® Showerhead
2.0 or 2.5 GPM
2 7/8"
(73 mm)
Full Spray
3 3/8"
(86 mm)
H777▲
3 1/2"
(89 mm)
H778▲
3 1/2"
(89 mm)
RP54752▲ H2O Showerhead
1.5 GPM
Full Spray
4 1/2"
(114 mm)
3 7/8"
(98 mm)
2 3/4"
(70 mm)
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASSE 1016
Indicates compliance to
ICC/ANSI A117.1
Tub Filler
Pressure (kPa)
2.5 GPM
Pressure
PSI)
Showerheads
1.5 GPM
2.0 GPM
34.1
30.3
26.5
22.7
18.9
15.1
11.4
7.6
3.8
0
Flow
Liters Per Minute
0 69 138 207 276 345 414 483 552 621
9
8
7
6
5
4
allons Per Minute)
3
2
1
Flow (U.S.
0
0 10 20 30 40 50 60 70 80 90
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2013 Masco Corporation of Indiana
