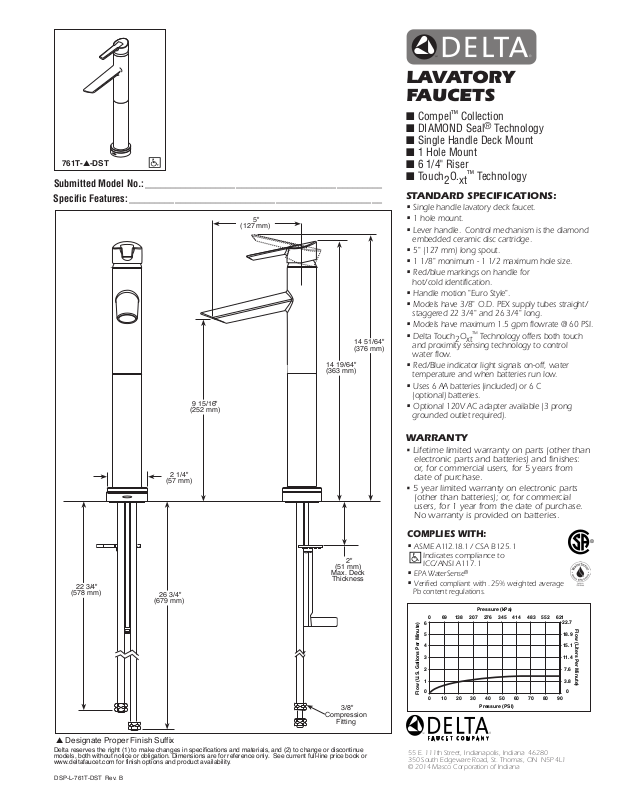

761T-▲-DST
®
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
5"
(127 mm)
14 51/64"
(376 mm)
14 19/64"
(363 mm)
9 15/16"
(252 mm)
LAVATORY
FAUCETS
■ Compel™ Collection
■ DIAMOND Seal® Technology
■ Single Handle Deck Mount
■ 1 Hole Mount
■ 6 1/4" Riser
■ Touch2O.
STANDARD SPECIFICATIONS:
•
Single handle lavatory deck faucet.
•
1 hole mount.
•
Lever handle. Control mechanism is the diamond
embedded ceramic disc cartridge.
•
5" (127 mm) long spout.
•
1 1/8" monimum - 1 1/2 maximum hole size.
•
Red/blue markings on handle for
hot/cold identification.
•
Handle motion "Euro Style".
•
Models have 3/8" O.D. PEX supply tubes straight/
staggered 22 3/4" and 26 3/4" long.
•
Models have maximum 1.5 gpm flowrate @ 60 PSI.
•
Delta Touch2O
and proximity sensing technology to control
water flow.
•
Red/Blue indicator light signals on-off, water
temperature and when batteries run low.
•
Uses 6 AA batteries (included) or 6 C
(optional) batteries.
•
Optional 120V AC adapter available (3 prong
grounded outlet required).
™
Technology
xt
™
Technology offers both touch
xt
22 3/4"
(578 mm)
2 1/4"
(57 mm)
26 3/4"
(679 mm)
2"
(51 mm)
Max. Deck
Thickness
3/8"
Compression
Fitting
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
Indicates compliance to
ICC/ANSI A117.1
•
EPA WaterSense
•
Verified compliant with .25% weighted average
Pb content regulations.
069 138 207 276 345 414 483 552 621
6
5
4
3
2
1
0
Flow (U.S. Gallons Per Minute)
0102030405060708090
®
Pressure (kPa)
Pressure (PSI)
22.7
18.9
15.1
11.4
7.6
3.8
Flow (Liters Per Minute)
0
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-L-761T-DST Rev. B
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2014 Masco Corporation of Indiana
