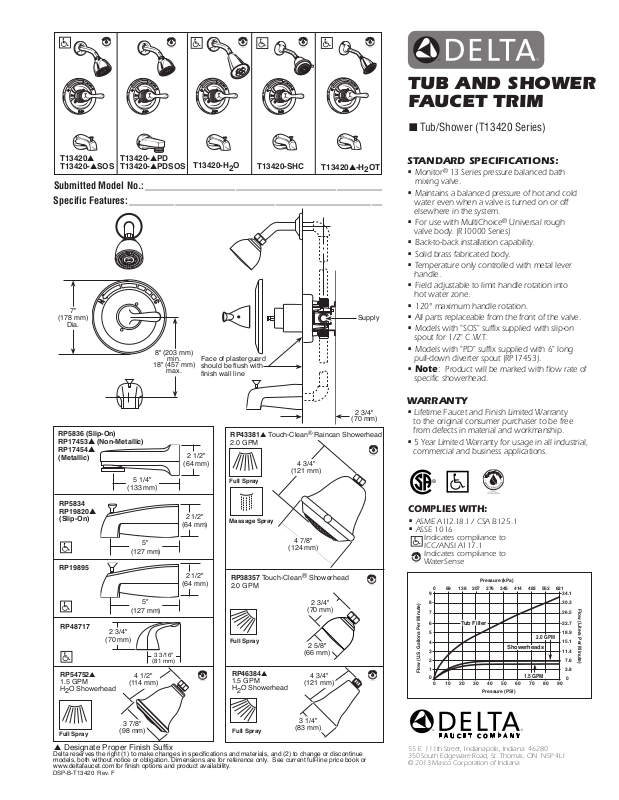

S
G
TUB AND SHOWER
®
FAUCET TRIM
■ Tub/Shower (T13420 Series)
T13420▲
T13420-▲SOS
T13420-▲PD
T13420-▲PDSOS
T13420-H2O
T13420-SHC
T13420▲-H2OT
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
7"
(178 mm)
Dia.
RP5836 (Slip-On)
RP17453▲ (Non-Metallic)
RP17454▲
(Metallic)
5 1/4"
(133 mm)
RP5834
RP19820▲
(Slip-On)
(127 mm)
RP19895
(127 mm)
RP48717
RP54752▲
1.5 GPM
H2O Showerhead
2 3/4"
(70 mm)
4 1/2"
(114 mm)
8" (203 mm)
18" (457 mm)
max.
5"
5"
3 3/16"
(81 mm)
min.
Face of plasterguard
should be flush with
finish wall line
2 1/2"
(64 mm)
2 1/2"
(64 mm)
2 1/2"
(64 mm)
RP43381▲ Touch-Clean® Raincan Showerhead
2.0 GPM
4 3/4"
(121 mm)
Full Spray
Massage Spray
4 7/8"
(124 mm)
RP38357 Touch-Clean® Showerhead
2.0 GPM
2 3/4"
(70 mm)
Full Spray
RP46384▲
1.5 GPM
H2O Showerhead
2 5/8"
(66 mm)
4 3/4"
(121 mm)
Supply
2 3/4"
(70 mm)
STANDARD SPECIFICATIONS:
•
Monitor® 13 Series pressure balanced bath
mixing valve.
•
Maintains a balanced pressure of hot and cold
water even when a valve is turned on or off
elsewhere in the system.
•
For use with MultiChoice® Universal rough
valve body. (R10000 Series)
•
Back-to-back installation capability.
•
Solid brass fabricated body.
•
Temperature only controlled with metal lever
handle.
•
Field adjustable to limit handle rotation into
hot water zone.
•
120° maximum handle rotation.
•
All parts replaceable from the front of the valve.
•
Models with "SOS" suffix supplied with slip-on
spout for 1/2" C.W.T.
•
Models with "PD" suffix supplied with 6" long
pull-down diverter spout (RP17453).
• Note:
Product will be marked with flow rate of
specific showerhead.
WARRANTY
•
Lifetime Faucet and Finish Limited Warranty
to the original consumer purchaser to be free
from defects in material and workmanship.
•
5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASSE 1016
Indicates compliance to
ICC/ANSI A117.1
Indicates compliance to
WaterSense
Tub Filler
Pressure (kPa)
Pressure (PSI)
Showerheads
1.5 GPM
2.0 GPM
34.1
30.3
26.5
22.7
18.9
15.1
11.4
7.6
Flow (Liters Per Minute)
3.8
0
0 69 138 207 276 345 414 483 552 621
9
8
7
6
5
4
allons Per Minute)
.
3
2
1
Flow (U.
0
0 10 20 30 40 50 60 70 80 90
3 7/8"
Full Spray
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T13420 Rev. F
(98 mm)
Full Spray
3 1/4"
(83 mm)
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2013 Masco Corporation of Indiana
