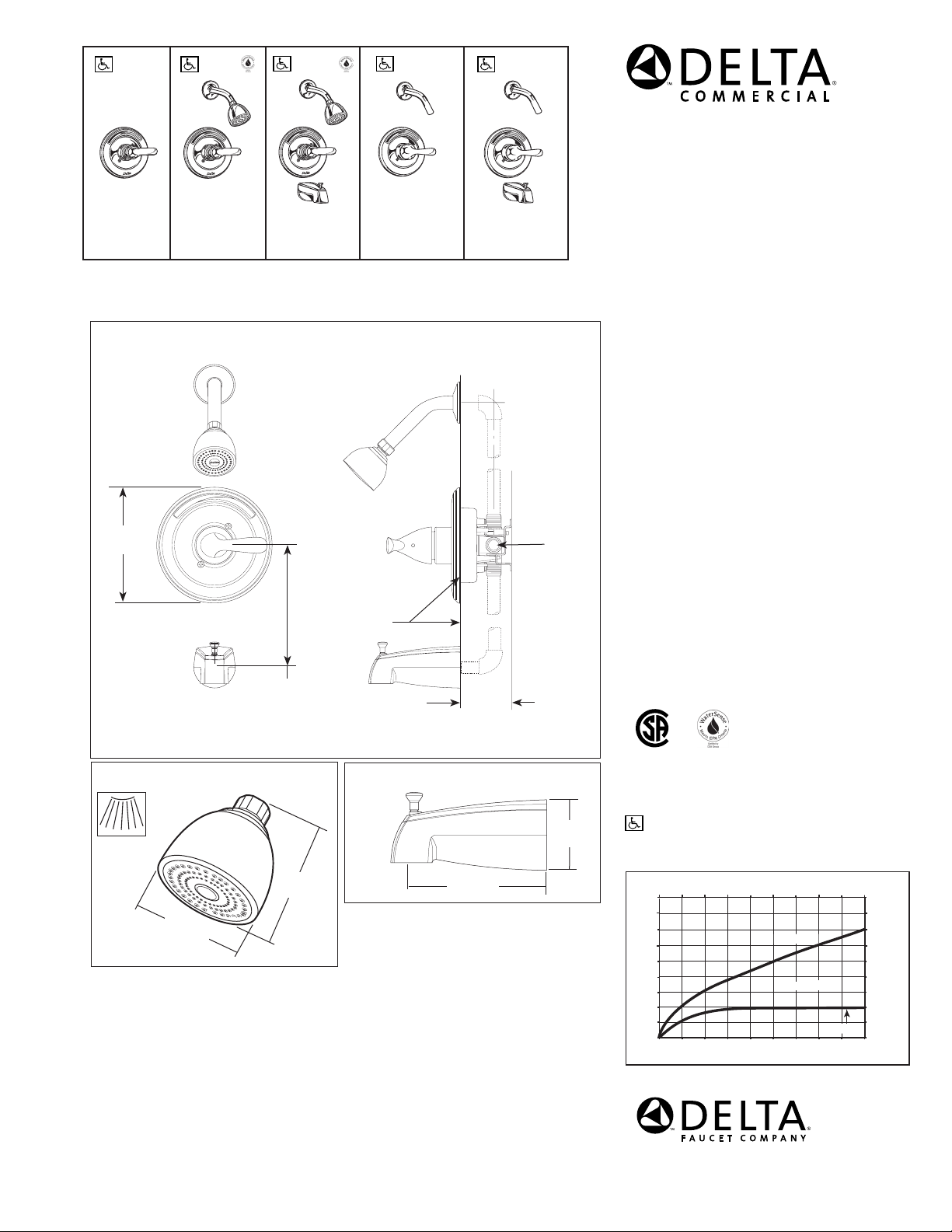

T13091 T13291-LHD
Pressure (kPa)
®
T13291
T13491
T13491-LHD
T13491-SLHD
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
7" Dia.
(178 mm)
Face of plasterguard
should be flush with
finish wall line
8" (203 mm)
min.
18" (457 mm)
max.
Supply
2 3/4"
(70 mm)

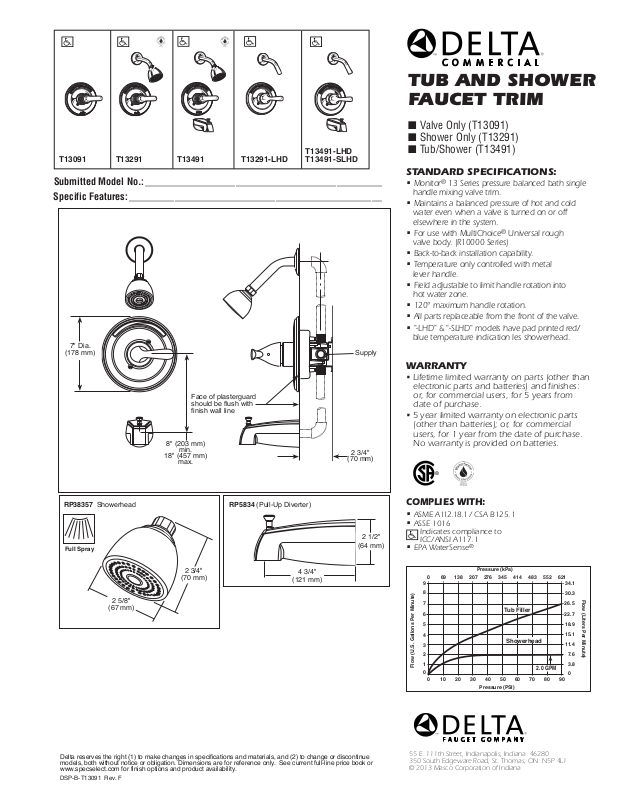

TUB AND SHOWER
FAUCET TRIM
■ Valve Only (T13091)
■ Shower Only (T13291)
■ Tub/Shower (T13491)
STANDARD SPECIFICATIONS:
•
Monitor® 13 Series pressure balanced bath single
handle mixing valve trim.
•
Maintains a balanced pressure of hot and cold
water even when a valve is turned on or off
elsewhere in the system.
•
For use with MultiChoice® Universal rough
valve body. (R10000 Series)
•
Back-to-back installation capability.
•
Temperature only controlled with metal
lever handle.
•
Field adjustable to limit handle rotation into
hot water zone.
•
120° maximum handle rotation.
•
All parts replaceable from the front of the valve.
•
"-LHD" & "-SLHD" models have pad printed red/
blue temperature indication les showerhead.
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
RP38357 Showerhead
Full Spray
2 3/4"
(70 mm)
2 5/8"
(67 mm)
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.specselect.com for finish options and product availability.
DSP-B-T13091 Rev. F
RP5834 (Pull-Up Diverter)
2 1/2"
(64 mm)
4 3/4"
(121 mm)
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASSE 1016
Indicates compliance to
ICC/ANSI A117.1
•
EPA WaterSense
069 138 207 276 345 414 483 552 621
9
8
7
6
5
4
3
2
1
Flow (U.S. Gallons Per Minute)
0
0102030405060708090
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2013 Masco Corporation of Indiana
®
Tub Filler
Showerhead
2.0 GPM
Pressure (PSI)
34.1
30.3
Flow (Liters Per Minute)
26.5
22.7
18.9
15.1
11.4
7.6
3.8
0
