Pressure (PSI)
Flow (U.S. Gallons Per Minute)
Flow (Liters Per Minute)

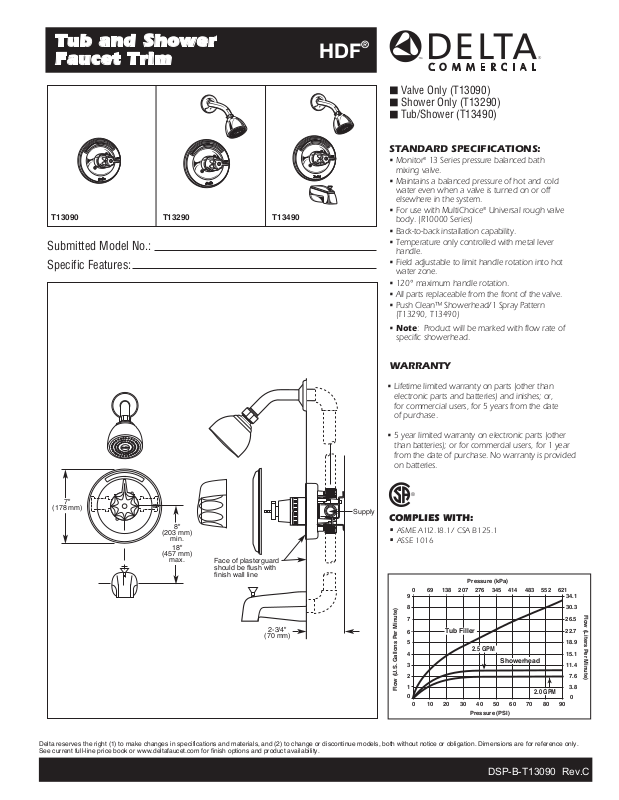

Tub and Shower
Faucet Trim
T13090
Submitted Model No.:
Specific Features:
T13290
T13490
HDF
®
Valve Only (T13090)
Shower Only (T13290)
Tub/Shower (T13490)
STANDARD SPECIFICATIONS:
• Monitor®13 Series pressure balanced bath
mixing valve.
• Maintains a balanced pressure of hot and cold
water even when a valve is turned on or off
elsewhere in the system.
• For use with MultiChoice
body. (R10000 Series)
• Back-to-back installation capability.
• Temperature only controlled with metal lever
handle.
• Field adjustable to limit handle rotation into hot
water zone.
• 120° maximum handle r
• All parts replaceable from the front of the valve.
• Push Clean™ Showerhead/1 Spray Pattern
(T13290, T13490)
• Note: Product will be marked with flow rate of
specific showerhead.
®
Universal rough valve
otation.
7"
(178 mm)
8"
(203 mm)
min.
18"
(457 mm)
max.
Face of plasterguard
should be flush with
finish wall line
2-3/4"
(70 mm)
Supply
WARRANTY
• Lifetime limited warranty on parts (other than
electronic parts and batteries) and inishes; or,
for commercial users, for 5 years from the date
of purchase.
• 5 year limited warranty on electronic parts (other
than batteries); or for commercial users, for 1 year
from the date of purchase. No warranty is provided
on batteries.
®
COMPLIES WITH:
•
ASME A112.18.1/ CSA B125.1
•
ASSE 1016
Tub Filler
Pressure (kPa)
2.5 GPM
Showerhead
2.0 GPM
34.1
30.3
26.5
22.7
18.9
15.1
11.4
7.6
3.8
0
0 69 138 207 276 345 414 483 552 621
9
8
7
6
5
4
3
2
1
0
0 10 20 30 40 50 60 70 80 90
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation. Dimensions are for reference only.
See current full-line price book or www.deltafaucet.com for finish options and product availability.
DSP-B-T13090 Rev.C
