Page 1
®
= Adjustable H2Okinetic™ Spray (AH2O)
= Soft Full Spray (SF)
= Shampoo Rinsing Spray (SR)
= Shampoo Rinsing
Spray
w/Massage (SRM)
=
Full Spray w/Massage (FSM)
= High-Efficiency Spray (HE)
= Crossing Full Spray (CF)
= Crossing Full Spray w/Massage (CFM)
= Fast Massage (FM)
= Soft Drench w/Full Spray (SDF)
= Soft Drench Spray (SD)
= Pause (P)
= Full Body Spray (FB)
= Adjustable Full Spray (AF)
SR
CF
CFM
HE
SDF
AF
SRM
SF
FB
SD
P
FSM
FM
= Massage Spray (M)
M
= Slow Massage (SM)
SM
= H
2
Okinetic™ Spray (H2O)
H
2
O
= Soft Drench Spray w/Massage (SDM)
SDM
AH
2
O
T17T067▲
T17T267▲
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
6 1/2"
(165 mm)
Square
8" (203 mm)
min.
18" (457 mm)
max.
▲ Designate Proper Finish Suffix
RP70171▲ H2O Showerhead
T17T467▲
16"
(406 mm)
Face of plasterguard
should be flush with
finish wall line
2 3/4" (70mm)
RP75435▲ Pull-Up Diverter Tub Spout

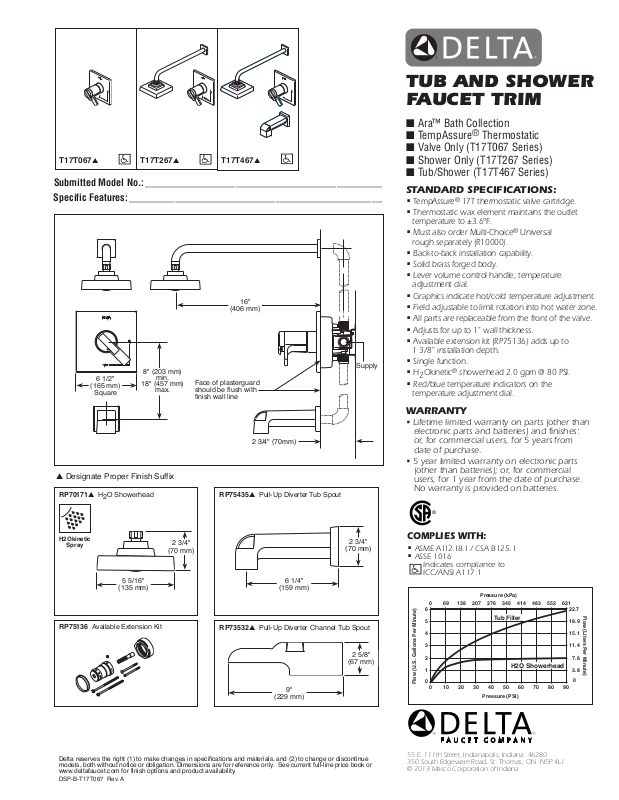

TUB AND SHOWER
FAUCET TRIM
■ Ara™ Bath Collection
■ TempAssure® Thermostatic
■ Valve Only (T17T067 Series)
■ Shower Only (T17T267 Series)
■ Tub/Shower (T17T467 Series)
STANDARD SPECIFICATIONS:
•
TempAssure® 17T thermostatic valve cartridge.
•
Thermostatic wax element maintains the outlet
temperature to ±3.6ºF.
•
Must also order Multi-Choice® Universal
rough separately (R10000).
•
Back-to-back installation capability.
•
Solid brass forged body.
•
Lever volume control handle; temperature
adjustment dial.
•
Graphics indicate hot/cold temperature adjustment.
•
Field adjustable to limit rotation into hot water zone.
•
All parts are replaceable from the front of the valve.
•
Adjusts for up to 1" wall thickness.
•
Available extension kit (RP75136) adds up to
1 3/8" installation depth.
•
Supply
Single function.
•
H2Okinetic® showerhead 2.0 gpm @ 80 PSI.
•
Red/blue temperature indicators on the
temperature adjustment dial.
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
H2Okinetic
Spray
RP75136 Available Extension Kit
5 5/16"
(135 mm)
2 3/4"
(70 mm)
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T17T067 Rev. A
2 3/4"
(70 mm)
6 1/4"
(159 mm)
RP73532▲ Pull-Up Diverter Channel Tub Spout
(229 mm)
2 5/8"
(67 mm)
9"
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASSE 1016
Indicates compliance to
ICC/ANSI A117.1
069 138 207 276 345 414 483 552 621
)etuniM reP snollaG .S.U( wolF
6
5
4
3
2
1
0
0102030405060708090
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2013 Masco Corporation of Indiana
Pressure (kPa)
Tub Filler
H2O Showerhead
Pressure (PSI)
22.7
18.9
15.1
11.4
olF
w
7.6
uniM reP sretiL(
3.8
)et
0
