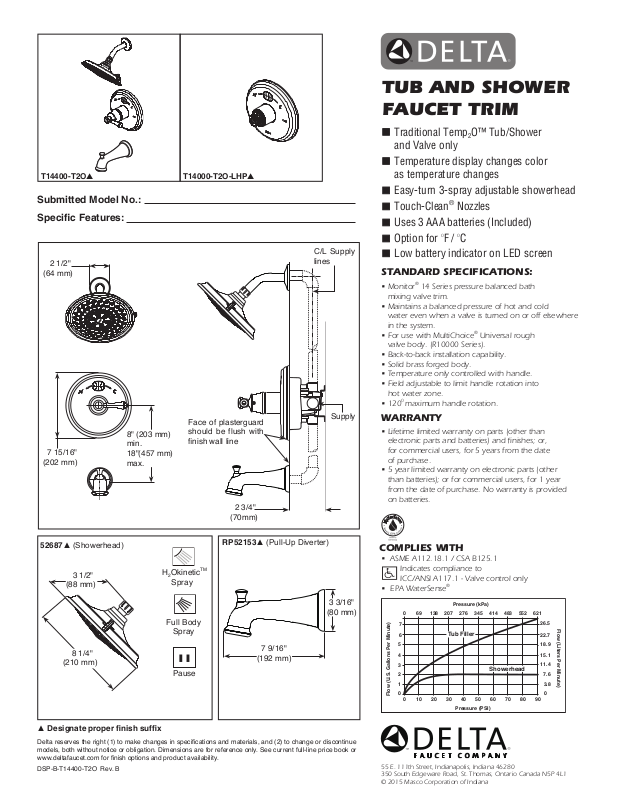

Delta DLT7199 Specifications

T14400-T2O

▲

Submitted Model No.:

Specic Features:

2 1/2"
(64 mm)

8" (203 mm)

7 15/16"
(202 mm)

min.
18"(457 mm)
max.

T14000-T2O-LHP

Face of plasterguard
should be flush with
nish wall line

2 3/4"
(70mm)

TUB AND SHOWER
FAUCET TRIM

Traditional Temp2O™ Tub/Shower
and Valve only

Temperature display changes color

▲

C/L Supply

lines

Supply

as temperature changes
Easy-turn 3-spray adjustable showerhead
Touch-Clean® Nozzles
Uses 3 AAA batteries (Included)
Option for 0F / 0C

Low battery indicator on LED screen

STANDARD SPECIFICATIONS:

• Monitor® 14 Series pressure balanced bath

mixing valve trim.

• Maintains a balanced pressure of hot and cold

water even when a valve is turned on or off elsewhere
in the system.

• For use with MultiChoice® Universal rough

valve body. (R10000 Series).

• Back-to-back installation capability.

• Solid brass forged body.

• Temperature only controlled with handle.

• Field adjustable to limit handle rotation into

hot water zone.

• 1200 maximum handle rotation.

WARRANTY

• Lifetime limited warranty on parts (other than
electronic parts and batteries) and inishes; or,
for commercial users, for 5 years from the date
of purchase.

• 5 year limited warranty on electronic parts (other

than batteries); or for commercial users, for 1 year
from the date of purchase. No warranty is provided
on batteries.

▲ (Showerhead)

52687

3 1/2"

(88 mm)

H2Okinetic

Spray

RP52153

TM

▲ (Pull-Up Diverter)

3 3/16"

(80 mm)
Full Body
Spray

8 1/4"
(210 mm)

7 9/16"
(192 mm)

Pause

▲

Designate proper nish sufx

Delta reserves the right (1) to make changes in specications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for nish options and product availability.

DSP-B-T14400-T2O Rev. B

COMPLIES WITH

• ASME A112.18.1 / CSA B125.1
Indicates compliance to

ICC/ANSI A117.1 - Valve control only

• EPA WaterSense

069138 207276 345414 483552 621

7

6

5

4

3

2

1

0

Flow (U.S. Gallons Per Minute)

0102030405060708090

55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, Ontario Canada N5P 4L1
© 2015 Masco Corporation of Indiana

®

Pressure (kPa)

Tub Filler

Pressure (PSI)

Showerhead

26.5

22.7

18.9

15.1

11.4

7.6

3.8

0

Flow (Liters Per Minute)
