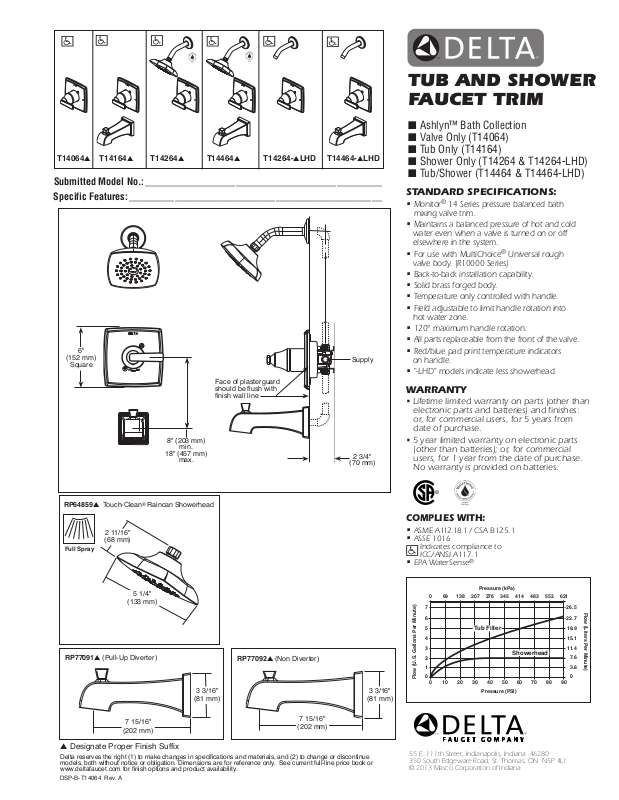

T14064▲ T14264▲ T14464▲
®
T14164▲
T14264-▲LHD T14464-▲LHD
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
6"
(152 mm)
Square
8" (203 mm)
min.
18" (457 mm)
max.
Face of plasterguard
should be flush with
finish wall line
Supply
2 3/4"
(70 mm)
TUB AND SHOWER
FAUCET TRIM
■ Ashlyn™ Bath Collection
■ Valve Only (T14064)
■ Tub Only (T14164)
■ Shower Only (T14264 & T14264-LHD)
■ Tub/Shower (T14464 & T14464-LHD)
STANDARD SPECIFICATIONS:
•
Monitor® 14 Series pressure balanced bath
mixing valve trim.
•
Maintains a balanced pressure of hot and cold
water even when a valve is turned on or off
elsewhere in the system.
•
For use with MultiChoice® Universal rough
valve body. (R10000 Series)
•
Back-to-back installation capability.
•
Solid brass forged body.
•
Temperature only controlled with handle.
•
Field adjustable to limit handle rotation into
hot water zone.
•
120° maximum handle rotation.
•
All parts replaceable from the front of the valve.
•
Red/blue pad print temperature indicators
on handle.
•
"-LHD" models indicate less showerhead.
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
RP64859▲ Touch-Clean® Raincan Showerhead
COMPLIES WITH:
•
2 11/16"
Full Spray
RP77091▲ (Pull-Up Diverter)
(68 mm)
5 1/4"
(133 mm)
7 15/16"
(202 mm)
3 3/16"
(81 mm)
RP77092▲ (Non Diverter)
3 3/16"
(81 mm)
7 15/16"
(202 mm)
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T14064 Rev. A
ASME A112.18.1 / CSA B125.1
•
ASSE 1016
Indicates compliance to
ICC/ANSI A117.1
•
EPA WaterSense
069 138 207 276 345 414 483 552 621
7
6
5
4
3
2
1
0
Flow (U.S. Gallons Per Minute)
0102030405060708090
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2013 Masco Corporation of Indiana
®
Pressure (kPa)
Tub Filler
Showerhead
Pressure (PSI)
26.5
Flow (Liters Per Minute)
22.7
18.9
15.1
11.4
7.6
3.8
0
