ROMAN
®
0
1
2
3
4
5
0 10 20 30 40 50 60 70 80 90
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
0 69 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow (Liters Per Minute)
0
1
2
3
4
5
0 10 20 30 40 50 60 70 80 90
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
Showerhead
0 69 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow (Liters Per Minute)

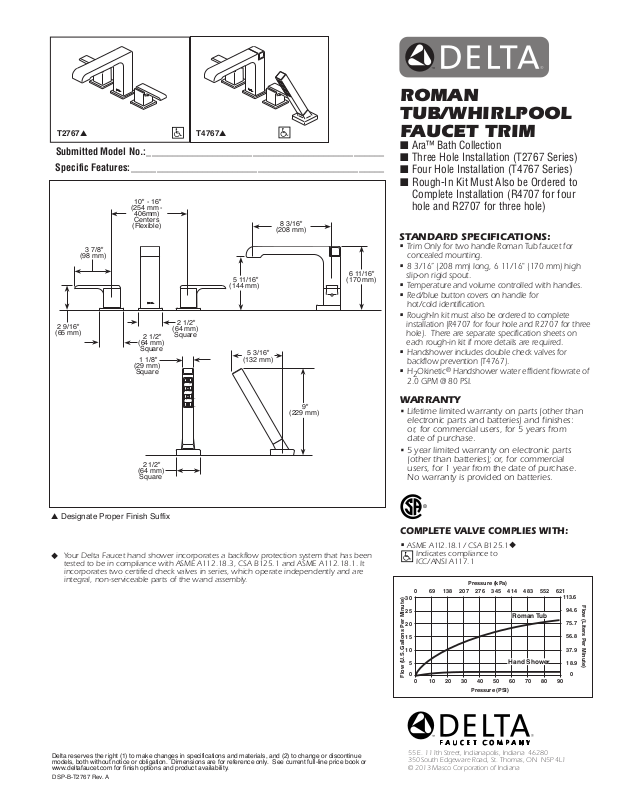

TUB/WHIRLPOOL
T2767▲
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
10" - 16"
(254 mm -
406mm)
Centers
(Flexible)
3 7/8"
(98 mm)
2 9/16"
(65 mm)
2 1/2"
(64 mm)
Square
1 1/8"
(29 mm)
Square
2 1/2"
(64 mm)
Square
2 1/2"
(64 mm)
Square
T4767▲
5 11/16"
(144 mm)
5 3/16"
(132 mm)
8 3/16"
(208 mm)
(229 mm)
9"
6 11/16"
(170 mm)
FAUCET TRIM
■ Ara™ Bath Collection
■ Three Hole Installation (T2767 Series)
■ Four Hole Installation (T4767 Series)
■ Rough-In Kit Must Also be Ordered to
Complete Installation (R4707 for four
hole and R2707 for three hole)
STANDARD SPECIFICATIONS:
•
Trim Only for two handle Roman Tub faucet for
concealed mounting.
•
8 3/16” (208 mm) long, 6 11/16" (170 mm) high
slip-on rigid spout.
•
Temperature and volume controlled with handles.
•
Red/blue button covers on handle for
hot/cold identification.
•
Rough-In kit must also be ordered to complete
installation (R4707 for four hole and R2707 for three
hole). There are separate specification sheets on
each rough-in kit if more details are required.
•
Handshower includes double check valves for
backflow prevention (T4767).
Okinetic® Handshower water efficient flowrate of
•
H
2
2.0 GPM @ 80 PSI.
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
▲ Designate Proper Finish Suffix
Your Delta Faucet hand shower incorporates a backflow protection system that has been
u
tested to be in compliance with ASME A112.18.3, CSA B125.1 and ASME A112.18.1. It
incorporates two certified check valves in series, which operate independently and are
integral, non-serviceable parts of the wand assembly.
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T2767 Rev. A
COMPLETE VALVE COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1u
Indicates compliance to
ICC/ANSI A117.1
0 69 138 207 276 345 414 483 552 621
30
25
20
15
10
5
0
Flow (U.S. Gallons Per Minute)
0 10 20 30 40 50 60 70 80 90
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2013 Masco Corporation of Indiana
Pressure (kPa)
Pressure (PSI)
Roman Tub
Hand Shower
113.6
94.6
75.7
56.8
37.9
18.9
0
Flow (Liters Per Minute)
