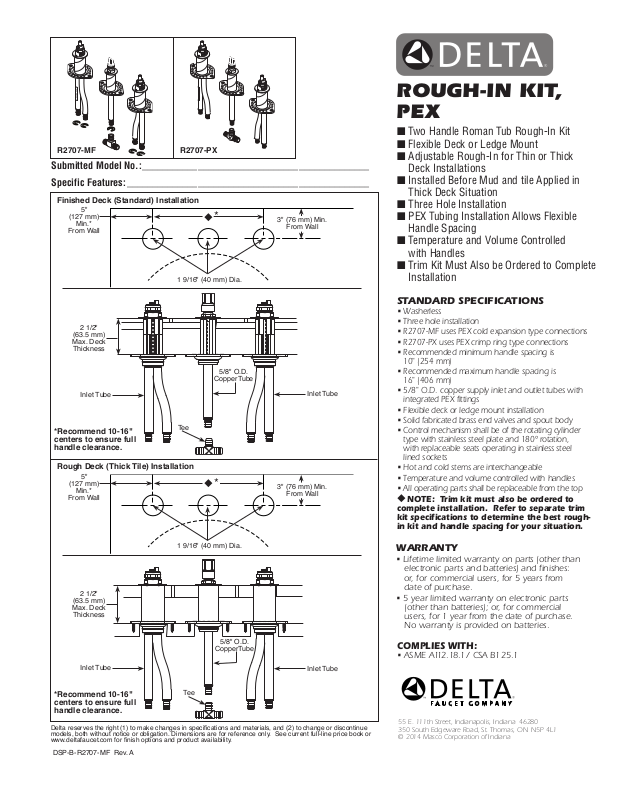

R2707-MF
R2707-PX
Submitted Model No.: _____________________________________________
Specific Features: ________________________________________________
Finished Deck (Standard) Installation
5"
(127 mm)
Min.*
From Wall
1 9/16" (40 mm) Dia.
2 1/2"
(63.5 mm)
Max. Deck
Thickness
Inlet Tube
*Recommend 10-16"
centers to ensure full
handle clearance.
Rough Deck (Thick Tile) Installation
5"
(127 mm)
Min.*
From Wall
Tee
*
u
5/8" O.D.
CopperTube
u
*
3" (76 mm) Min.
From Wall
Inlet Tube
3" (76 mm) Min.
From Wall
ROUGH-IN KIT,
PEX
■ Two Handle Roman Tub Rough-In Kit
■ Flexible Deck or Ledge Mount
■ Adjustable Rough-In for Thin or Thick
Deck Installations
■ Installed Before Mud and tile Applied in
Thick Deck Situation
■ Three Hole Installation
■ PEX Tubing Installation Allows Flexible
Handle Spacing
■ Temperature and Volume Controlled
with Handles
■ Trim Kit Must Also be Ordered to Complete
Installation
STANDARD SPECIFICATIONS
• Washerless
• Three hole installation
• R2707-MF uses PEX cold expansion type connections
• R2707-PX uses PEX crimp ring type connections
• Recommended minimum handle spacing is
10" (254 mm)
• Recommended maximum handle spacing is
16" (406 mm)
• 5/8" O.D. copper supply inlet and outlet tubes with
integrated PEX fittings
• Flexible deck or ledge mount installation
• Solid fabricated brass end valves and spout body
• Control mechanism shall be of the rotating cylinder
type with stainless steel plate and 180º rotation,
with replaceable seats operating in stainless steel
lined sockets
• Hot and cold stems are interchangeable
• Temperature and volume controlled with handles
• All operating parts shall be replaceable from the top
u
NOTE: Trim kit must also be ordered to
complete installation. Refer to separate trim
kit specifications to determine the best roughin kit and handle spacing for your situation.
1 9/16" (40 mm) Dia.
2 1/2"
(63.5 mm)
Max. Deck
Thickness
5/8" O.D.
CopperTube
Inlet Tube
*Recommend 10-16"
centers to ensure full
handle clearance.
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-R2707-MF Rev. A
Tee
Inlet Tube
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2014 Masco Corporation of Indiana
