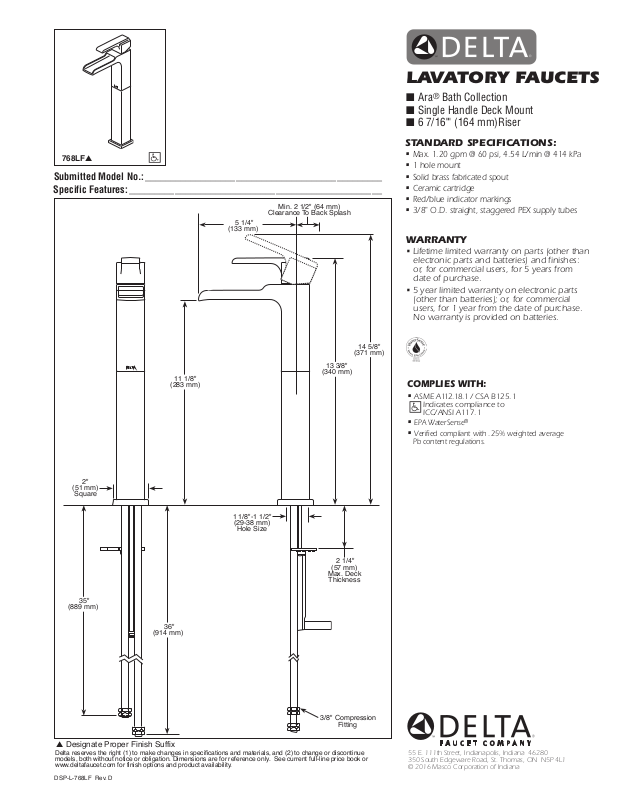

768LF▲
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
Min. 2 1/2" (64 mm)
Clearance To Back Splash
13 3/8"
(340 mm)
14 5/8"
(371 mm)
11 1/8"
(283 mm)
5 1/4"
(133 mm)
LAVATORY FAUCETS
■ Ara® Bath Collection
■ Single Handle Deck Mount
■ 6 7/16"" (164 mm)Riser
STANDARD SPECIFICATIONS:
•
Max. 1.20 gpm @ 60 psi, 4.54 L/min @ 414 kPa
•
1 hole mount
•
Solid brass fabricated spout
•
Ceramic cartridge
•
Red/blue indicator markings
•
3/8" O.D. straight, staggered PEX supply tubes
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
Indicates compliance to
ICC/ANSI A117.1
•
EPA WaterSense
•
Verified compliant with .25% weighted average
Pb content regulations.
®
2"
(51 mm)
Square
1 1/8"-1 1/2"
(29-38 mm)
Hole Size
2 1/4"
(57 mm)
Max. Deck
Thickness
35"
(889 mm)
36"
(914 mm)
3/8" Compression
Fitting
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-L-768LF Rev. D
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2016 Masco Corporation of Indiana
