T17097
TUB AND SHOWER
FAUCET TRIM
Valve Only (T17097)
Shower Only (T17297)
Tub/Shower (T17497)
®
®
U
P
C
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASSE 1016
Indicates compliance to
ICC/ANSI A117.1
•
EPA WaterSense
WARRANTY
•
Lifetime Faucet and Finish Limited Warranty
to the original consumer purchaser to be free
from defects in material and workmanship.
•
5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
Cassidy™ Series
STANDARD SPECIFICATIONS:
•
Monitor® 17 Series pressure balanced bath
mixing valve with Scald-Guard®.
•
Maintains a balanced pressure of hot and cold
water even when a valve is turned on or off
elsewhere in the system.
•
Back-to-back installation capability.
•
Solid brass forged body.
•
Lever volume control handle; temperature
adjustment dial.
•
Field adjustable to limit handle rotation into
hot water zone.
•
Maximum dial rotation adjustable between 90°
and 180°.
•
All parts replaceable from the front of the valve.
0
1
2
3
4
5
0 10 20 30 40 50 60 70 80 90
Pressure
(
PSI)
Flow (U.S.
G
allons Per Minute)
6
0 69 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow
(
Liters Per Minute
)
Showerhead
7
26.5
Tub Filler
•
For use with automatic compensating valves rated
at 7.48 L/min (1.92 gpm) or less.
®
•
Must also order MultiChoice universal rough separately.
•
H
2
Okinetic Technology 2.0 gpm max @ 80 PSI.
®
0
1
2
3
4
5
0 10 20 30 40 50 60 70 80 90
Pressure
(
PSI)
Flow (U.S.
G
allons Per Minute)
6
0 69 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow
(
Liters Per Minute
)
Showerhead
7
26.5
Tub Filler
®
T17297
Submitted Model No.:
Specific Features:
7"
(178 mm)
7"
(178 mm)
RP72565▲ (Pull-Up Diverter)
6 1/2"
(165 mm)
Face of plasterguard
should be flush with
finish wall line
8" (203 mm)
min.
18" (457 mm)
max.
(76 mm)
3 "
T17497
RP70172▲
Showerhead
Full Spray
Supply
2 3/4"
(70 mm)
H2Okinetic Technology Raincan
2 23/32"
(69 mm)
7 7/8"
(200 mm)
®

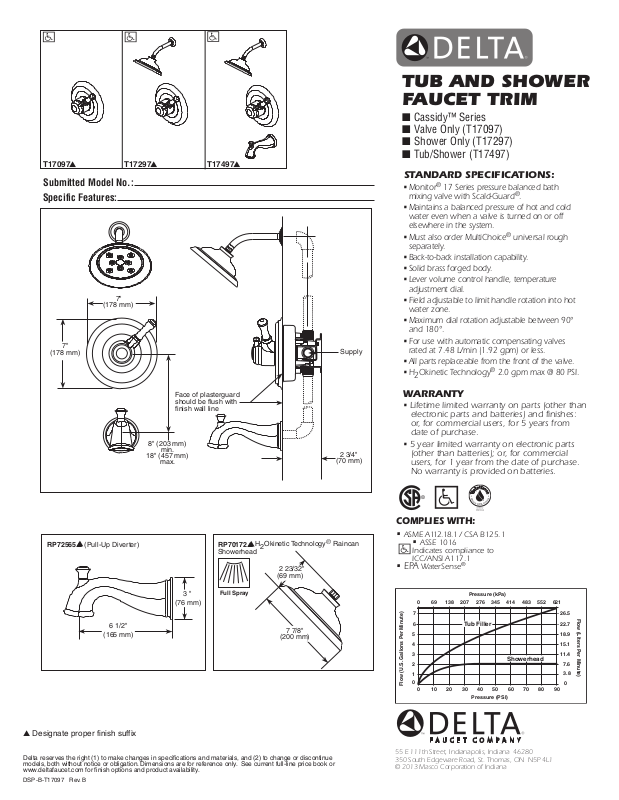

TUB AND SHOWER
FAUCET TRIM
■ Cassidy™ Series
■ Valve Only (T17097)
■ Shower Only (T17297)
■ Tub/Shower (T17497)
STanDarD SPECIFICaTIOnS:
• Monitor® 17 Series pressure balanced bath
mixing valve with Scald-Guard®.
• Maintains a balanced pressure of hot and cold
water even when a valve is turned on or off
elsewhere in the system.
• Must also order MultiChoice
separately.
• Back-to-back installation capability.
• Solid brass forged body.
• Lever volume control handle, temperature
adjustment dial.
• Field adjustable to limit handle rotation into hot
water zone.
• Maximum dial rotation adjustable between 90°
and 180°.
• For use with automatic compensating valves
rated at 7.48 L/min (1.92 gpm) or less.
• All parts replaceable from the front of the valve.
• H2Okinetic Technology
WarranTy
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASSE 1016
Indicates compliance to
ICC/ANSI A117.1
• EPA
WaterSense
®
®
universal rough
®
2.0 gpm max @ 80 PSI.
▲ Designate proper finish suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T17097 Rev. B
55 E 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2013 Masco Corporation of Indiana
