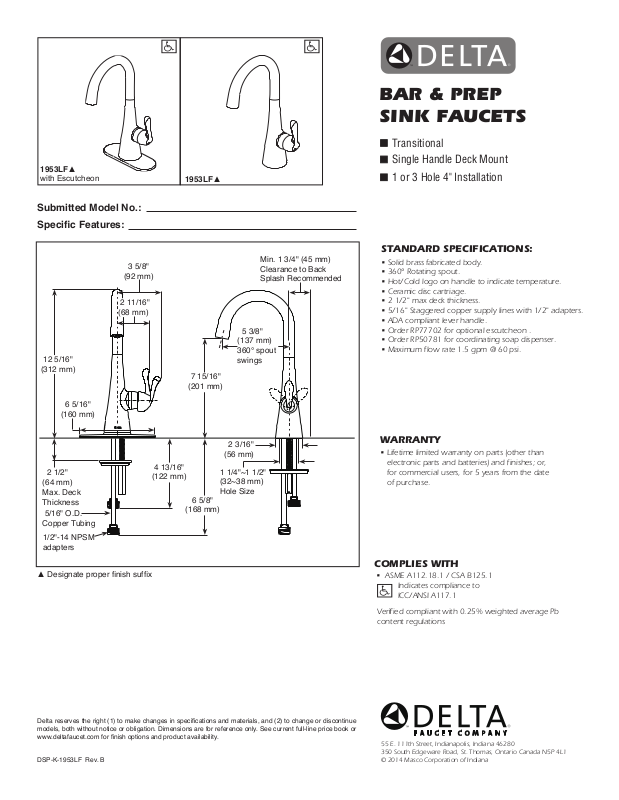

1953LF
with Escutcheon
Submitted Model No.:
Specic Features:
1953LF
BAR & PREP
SINK FAUCETS
Transitional
Single Handle Deck Mount
▲
1 or 3 Hole 4" Installation
12 5/16"
(312 mm)
6 5/16"
(160 mm)
2 1/2"
(64 mm)
Max. Deck
Thickness
5/16" O.D.
Copper Tubing
1/2"-14 NPSM
adapters
3 5/8"
(92 mm)
2 11/16"
(68 mm)
4 13/16"
(122 mm)
7 15/16"
(201 mm)
6 5/8"
(168 mm)
5 3/8"
(137 mm)
360° spout
swings
2 3/16"
(56 mm)
1 1/4"~1 1/2"
(32~38 mm)
Hole Size
Min. 1 3/4" (45 mm)
Clearance to Back
Splash Recommended
STANDARD SPECIFICATIONS:
• Solid brass fabricated body.
• 360° Rotating spout.
• Hot/Cold logo on handle to indicate temperature.
• Ceramic disc cartriage.
• 2 1/2" max deck thickness.
• 5/16" Staggered copper supply lines with 1/2" adapters.
• ADA compliant lever handle.
• Order RP77702 for optional escutcheon .
• Order RP50781 for coordinating soap dispenser.
• Maximum low rate 1.5 gpm @ 60 psi.
WARRANTY
• Lifetime limited warranty on parts (other than
electronic parts and batteries) and inishes; or,
for commercial users, for 5 years from the date
of purchase.
▲
Designate proper nish sufx
Delta reserves the right (1) to make changes in specications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for nish options and product availability.
DSP-K-1953LF Rev. B
COMPLIES WITH
• ASME A112.18.1 / CSA B125.1
Indicates compliance to
ICC/ANSI A117.1
Ver ied compliant with 0.25% weighted average Pb
content regulations
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, Ontario Canada N5P 4L1
© 2014 Masco Corporation of Indiana
