KITCHEN
FAUCETS
Single Handle Deck Mount
Grail Series
1 Hole Sink Applications
STANDARD SPECIFICATIONS:
•
Ceramic cartridge.
• 1 hole installation.
• 8 1/4" (210 mm) long, 7" (178 mm) high reach on
spout, swings 360°.
• Maximum 1 7/8" (48 mm) deck thickness.
•
Maximum flow rate 1.8 gpm @ 60 PSI.
• Color coded plug button on handle for
hot/cold identification.
WARRANTY
• Lifetime Faucet and Finish Limited Warranty
to the original consumer purchaser to be free
from defects in material and workmanship.
• 5 Year Limited Warranty for usage in all
industrial, commercial and business applications.
COMPLIES WITH
• ASME A112.18.1 / CSA B125.1
•
®
®
U
P
C
Verified compliant with 0.25% weighted
average Pb content regulations.
1 5/16"~1 1/2"
3
4
5
6
0 69 138 207 276 345 414 483 552 621
11.4
15.1
18.9
22.7
Pressure (kPa)
Flo
w (Liters P
®
ASME A112.18.6
NSF 61
Indicates compliance to
ICC / ANSI A117.1
•
0
1
2
3
4
5
0102030405060708090
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
069138 207276 345 414 483552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flo
w (Liters P
e
r Minute)
®

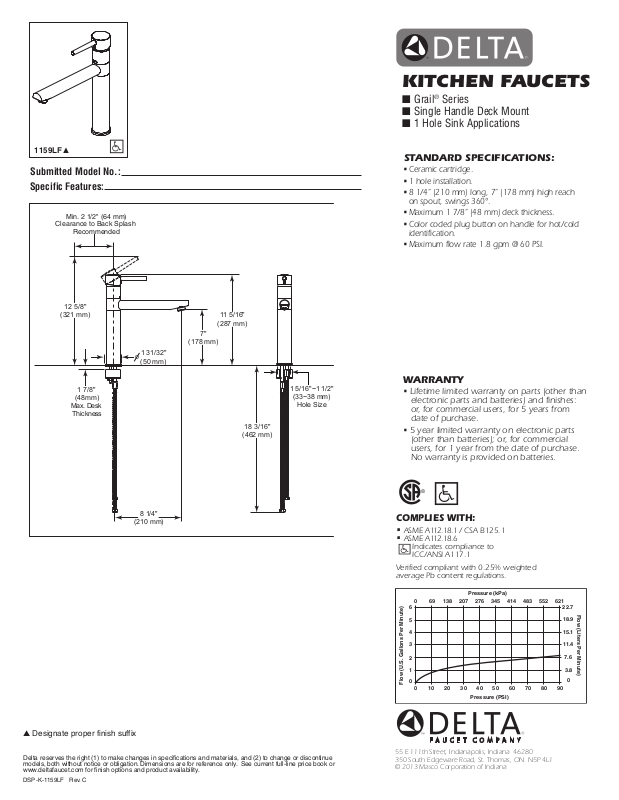

KITCHEN FAUCETS
■ Grail® Series
■ Single Handle Deck Mount
■ 1 Hole Sink Applications

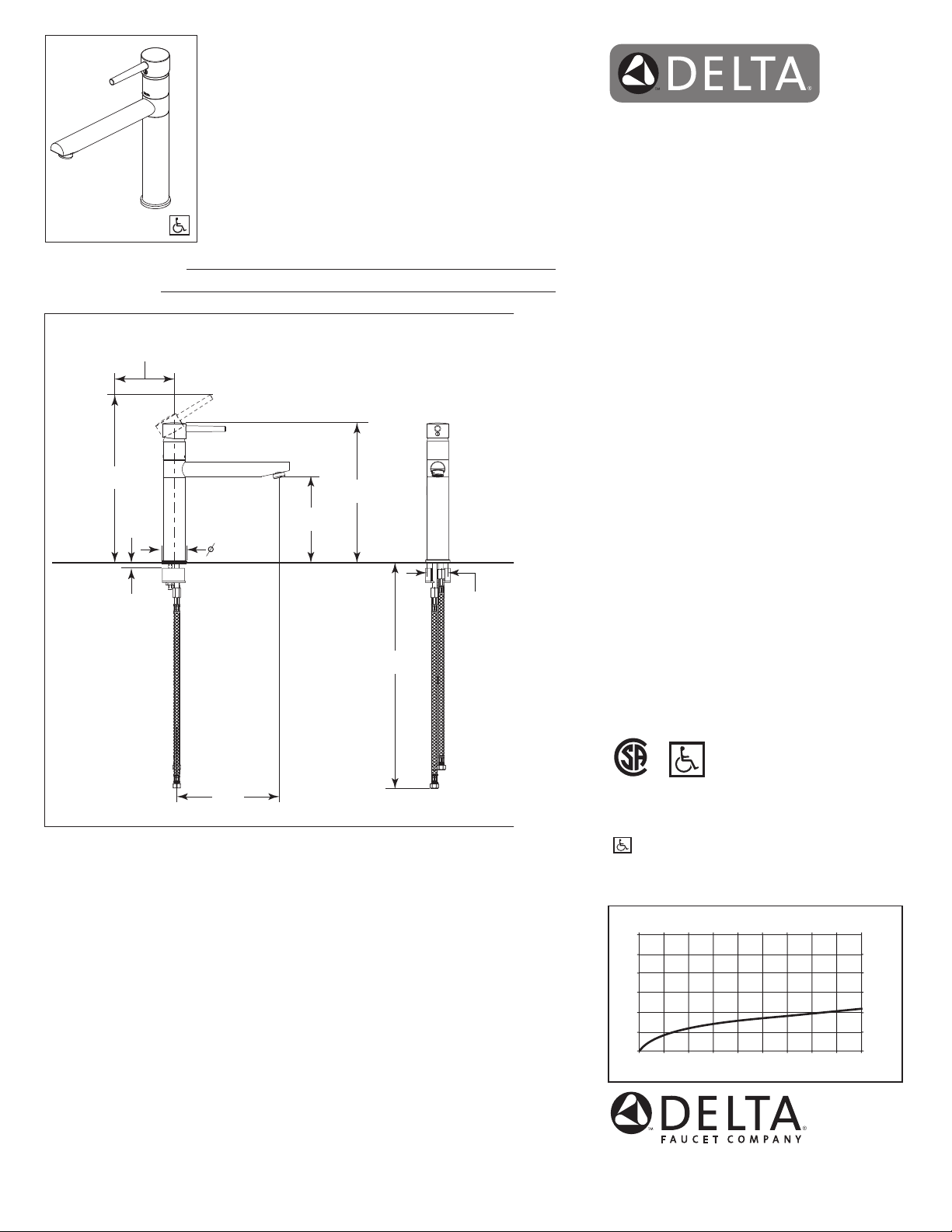

1159LF▲
Submitted Model No.:
Specific Features:
Min. 2 1/2" (64 mm)
Clearance to Back Splash
Recommended
12 5/8"
(321 mm)
1 7/8"
(48mm)
Max. Desk
Thickness
1 31/32"
(50 mm)
8 1/4"
(210 mm)
7"
(178 mm)
11 5/16"
(287 mm)
18 3/16"
(462 mm)
(33~38 mm)
Hole Size
StanDarD SPECIFICatIOnS:
• Ceramic cartridge.
• 1 hole installation.
• 8 1/4” (210 mm) long, 7” (178 mm) high reach
on spout, swings 360°.
• Maximum 1 7/8” (48 mm) deck thickness.
• Color coded plug button on handle for hot/cold
identification.
• Maximum flow rate 1.8 gpm @ 60 PSI.
Warranty
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WItH:
•
ASME A112.18.1 / CSA B125.1
•
ASME A112.18.6
Indicates compliance to
ICC/ANSI A117.1
Verified compliant with 0.25% weighted
average Pb content regulations.
▲ Designate proper finish suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-K-1159LF Rev. C
55 E 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2013 Masco Corporation of Indiana
