0
1
2
3
4
5
0102030405060708090
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
069 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow (Liters Per Minute)
HGM Models Only
®
u511LF-HDF
511LF-HGMHDF
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
4"
Centers
(102 mm)
6 1/2"
(165 mm)
Metal Grid Strainer
8"
(203 mm)
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.specselect.com for finish options and product availability.
DSP-L-511LF-WFHDF Rev. C
u515LF-HDF
(187 mm)
2 1/8"
(54 mm)
Dia.
1 5/8"
(42 mm)
to
2 3/8"
(61 mm)
1 3/8"
(35 mm)
Dia.
1 1/4"
(32 mm)
Dia.
7 3/8"
1 11/16"
(43 mm)
6 9/16"
(167 mm)
(127 mm)
Metal Pop-Up
(54 mm) Dia.
3 3/8"
(86 mm)
4 5/8"
(117 mm)
u516LF-HDF
516LF-HGMHDF
Min. 2 1/2" (64 mm) Clearance
to Back Splash
5"
8 9/16"
(218 mm)
1 1/2"
(38 mm)
2" (51 mm)
Max. Deck
Thickness
1/2"-14 NPSM
2 1/8"
1 5/8" (41 mm) to
2 3/8" (60 mm)
Dia. Hole
1 3/8"
(35 mm) Dia.
1 1/4"
(32 mm) Dia.
Min.
Size

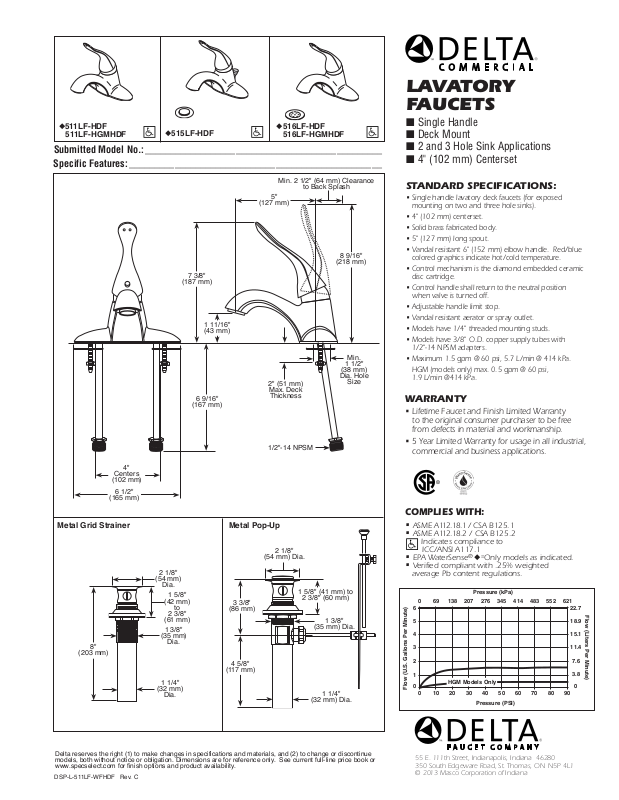

LAVATORY
FAUCETS
■ Single Handle
■ Deck Mount
■ 2 and 3 Hole Sink Applications
■ 4" (102 mm) Centerset
STANDARD SPECIFICATIONS:
• Single handle lavatory deck faucets (for exposed
mounting on two and three hole sinks).
• 4" (102 mm) centerset.
• Solid brass fabricated body.
• 5" (127 mm) long spout.
• Vandal resistant 6" (152 mm) elbow handle. Red/blue
colored graphics indicate hot/cold temperature.
• Control mechanism is the diamond embedded ceramic
disc cartridge.
• Control handle shall return to the neutral position
when valve is turned off.
• Adjustable handle limit stop.
• Vandal resistant aerator or spray outlet.
• Models have 1/4" threaded mounting studs.
• Models have 3/8" O.D. copper supply tubes with
1/2"-14 NPSM adapters.
• Maximum 1.5 gpm @ 60 psi, 5.7 L/min @ 414 kPa.
HGM (models only) max. 0.5 gpm @ 60 psi,
1.9 L/min @414 kPa.
WARRANTY
• Lifetime Faucet and Finish Limited Warranty
to the original consumer purchaser to be free
from defects in material and workmanship.
• 5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASME A112.18.2 / CSA B125.2
Indicates compliance to
ICC/ANSI A117.1
•
EPA WaterSense® u=Only models as indicated.
•
Verified compliant with .25% weighted
average Pb content regulations.
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2013 Masco Corporation of Indiana
