T17067▲
Flow (U.S. Gallons Per Minute)
= Adjustable H2Okinetic™ Spray (AH2O)
= Soft Full Spray (SF)
= Shampoo Rinsing Spray (SR)
= Shampoo Rinsing
Spray
w/Massage (SRM)
=
Full Spray w/Massage (FSM)
= High-Efficiency Spray (HE)
= Crossing Full Spray (CF)
= Crossing Full Spray w/Massage (CFM)
= Fast Massage (FM)
= Soft Drench w/Full Spray (SDF)
= Soft Drench Spray (SD)
= Pause (P)
= Full Body Spray (FB)
= Adjustable Full Spray (AF)
SR
CF
CFM
HE
SDF
AF
SRM
SF
FB
SD
P
FSM
FM
= Massage Spray (M)
M
= Slow Massage (SM)
SM
= H
2
Okinetic™ Spray (H2O)
H
2
O
= Soft Drench Spray w/Massage (SDM)
SDM
AH
2
O
T17267▲
T17467▲

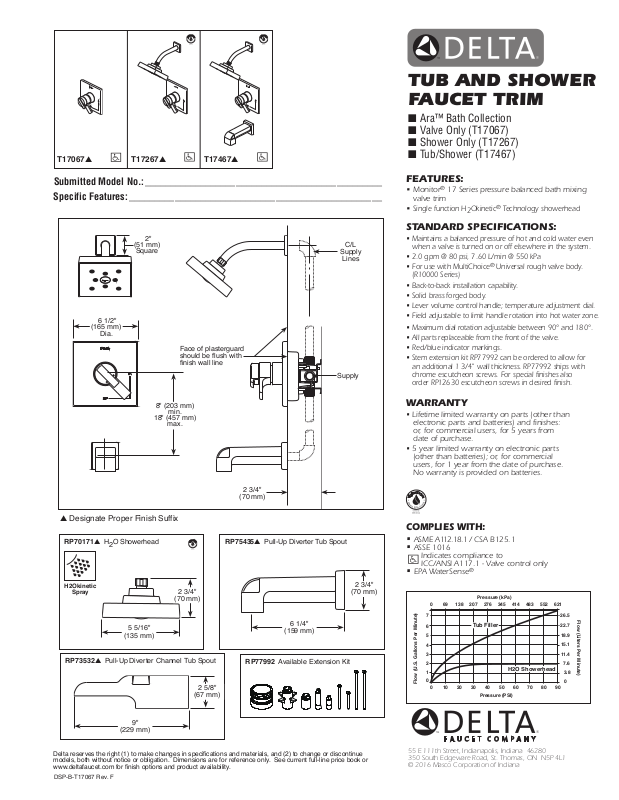

TUB AND SHOWER
FAUCET TRIM
■ Ara™ Bath Collection
■ Valve Only (T17067)
■ Shower Only (T17267)
■ Tub/Shower (T17467)
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
2"
(51 mm)
Square
6 1/2"
(165 mm)
Dia.
Face of plasterguard
should be flush with
finish wall line
8" (203 mm)
min.
18" (457 mm)
max.
▲ Designate Proper Finish Suffix
RP70171▲ H2O Showerhead
H2Okinetic
Spray
RP73532▲ Pull-Up Diverter Channel Tub Spout
5 5/16"
(135 mm)
2 3/4"
(70 mm)
2 5/8"
(67 mm)
Supply
2 3/4"
(70 mm)
RP75435▲ Pull-Up Diverter Tub Spout
6 1/4"
(159 mm)
RP77992 Available Extension Kit
C/L
Supply
Lines
(70 mm)
2 3/4"
FEATURES:
• Monitor® 17 Series pressure balanced bath mixing
valve trim
•
Single function H2Okinetic® Technology showerhead
STANDARD SPECIFICATIONS:
• Maintains a balanced pressure of hot and cold water even
when a valve is turned on or off elsewhere in the system.
• 2.0 gpm @ 80 psi, 7.60 L/min @ 550 kPa
• For use with MultiChoice® Universal rough valve body.
(R10000 Series)
• Back-to-back installation capability.
• Solid brass forged body.
• Lever volume control handle; temperature adjustment dial.
• Field adjustable to limit handle rotation into hot water zone.
• Maximum dial rotation adjustable between 90° and 180°.
• All parts replaceable from the front of the valve.
• Red/blue indicator markings.
• Stem extension kit RP77992 can be ordered to allow for
an additional 1 3/4" wall thickness. RP77992 ships with
chrome escutcheon screws. For special finishes also
order RP12630 escutcheon screws in desired finish.
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASSE 1016
Indicates compliance to
ICC/ANSI A117.1 - Valve control only
•
EPA WaterSense
069 138 207 276 345 414 483 552 621
7
6
5
4
3
2
1
0
0102030405060708090
®
Pressure (kPa)
Tub Filler
Pressure (PSI)
H2O Showerhead
26.5
Flow (Liters Per Minute)
22.7
18.9
15.1
11.4
7.6
3.8
0
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T17067 Rev. F
9"
(229 mm)
55 E 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2016 Masco Corporation of Indiana
