T17064▲ T17264▲ T17464▲
T17264▲-I T17464▲-I
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
6"
(152 mm)
Square
Supply
Face of plasterguard
should be flush with
finish wall line
8" (203 mm)
min.
18" (457 mm)
max.
2 3/4" (70mm)

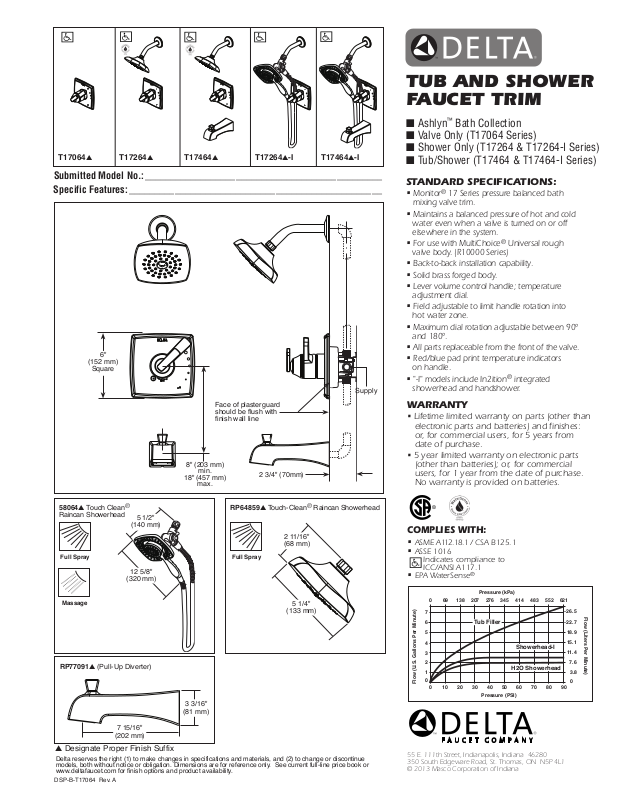

TUB AND SHOWER
FAUCET TRIM
■ Ashlyn™ Bath Collection
■ Valve Only (T17064 Series)
■ Shower Only (T17264 & T17264-I Series)
■ Tub/Shower (T17464 & T17464-I Series)
STANDARD SPECIFICATIONS:
•
Monitor® 17 Series pressure balanced bath
mixing valve trim.
•
Maintains a balanced pressure of hot and cold
water even when a valve is turned on or off
elsewhere in the system.
•
For use with MultiChoice® Universal rough
valve body. (R10000 Series)
•
Back-to-back installation capability.
•
Solid brass forged body.
•
Lever volume control handle; temperature
adjustment dial.
•
Field adjustable to limit handle rotation into
hot water zone.
•
Maximum dial rotation adjustable between 90º
and 180º.
•
All parts replaceable from the front of the valve.
•
Red/blue pad print temperature indicators
on handle.
•
"-I" models include In2ition® integrated
showerhead and handshower.
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
58064▲ Touch Clean®
Raincan Showerhead
Full Spray
Massage
RP77091▲ (Pull-Up Diverter)
5 1/2"
(140 mm)
12 5/8"
(320 mm)
7 15/16"
(202 mm)
3 3/16"
(81 mm)
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T17064 Rev. A
RP64859▲ Touch-Clean® Raincan Showerhead
2 11/16"
(68 mm)
Full Spray
5 1/4"
(133 mm)
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASSE 1016
Indicates compliance to
ICC/ANSI A117.1
•
EPA WaterSense
0 69 138 207 276 345 414 483 552 621
7
6
5
4
allons Per Minute)
3
.
2
1
0
Flow (U.
0 10 20 30 40 50 60 70 80 90
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2013 Masco Corporation of Indiana
®
Pressure (kPa)
Tub Filler
Showerhead-I
H2O Showerhead
Pressure (PSI)
26.5
22.7
18.9
15.1
11.4
7.6
Flow (Liters Per Minute)
3.8
0
