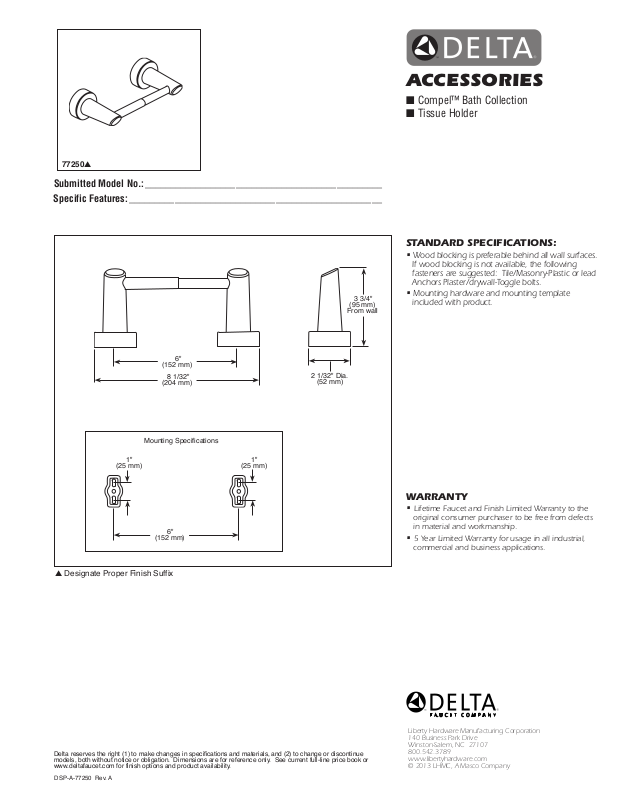

77250▲
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
3 3/4"
(95 mm)
From wall
6"
(152 mm)
8 1/32"
(204 mm)
2 1/32" Dia.
(52 mm)
ACCESSORIES
■ Compel™ Bath Collection
■ Tissue Holder
STANDARD SPECIFICATIONS:
•
Wood blocking is preferable behind all wall surfaces.
If wood blocking is not available, the following
fasteners are suggested: Tile/Masonry-Plastic or lead
Anchors Plaster/drywall-Toggle bolts.
•
Mounting hardware and mounting template
included with product.
Mounting Specifications
1"
(25 mm)
6"
(152 mm)
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-A-77250 Rev. A
1"
(25 mm)
WARRANTY
•
Lifetime Faucet and Finish Limited Warranty to the
original consumer purchaser to be free from defects
in material and workmanship.
•
5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
Liberty Hardware Manufacturing Corporation
140 Business Park Drive
Winston-Salem, NC 27107
800.542.3789
www.libertyhardware.com
© 2013 LHMC, A Masco Company
