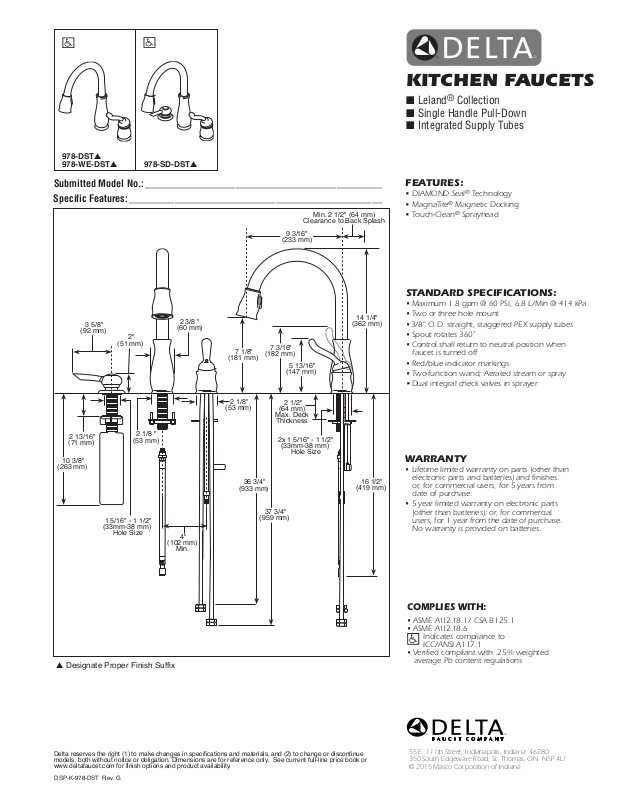

KITCHEN FAUCETS
■ Leland® Collection
■ Single Handle Pull-Down
■ Integrated Supply Tubes
978-DST▲
978-WE-DST▲
978-SD-DST▲
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
Min. 2 1/2" (64 mm)
Clearance to Back Splash
9 3/16"
(233 mm)
14 1/4"
(362 mm)
16 1/2"
(419 mm)
2 13/16"
(71 mm)
10 3/8"
(263 mm)
3 5/8"
(92 mm)
2"
(51 mm)
2 1/8 "
(53 mm)
1 5/16" - 1 1/2"
(33mm-38 mm)
Hole Size
2 3/8 "
(60 mm)
4"
(102 mm)
Min.
7 1/8"
(181 mm)
2 1/8"
(53 mm)
36 3/4"
(933 mm)
7 3/16"
(182 mm)
5 13/16"
(147 mm)
2 1/2"
(64 mm)
Max. Deck
Thickness
2x 1 5/16" - 1 1/2"
(33mm-38 mm)
Hole Size
37 3/4"
(959 mm)
FEATURES:
• DIAMOND Seal® Technology
®
• MagnaTite
Magnetic Docking
• Touch-Clean® Sprayhead
STANDARD SPECIFICATIONS:
•
Maximum 1.8 gpm @ 60 PSI, 6.8 L/Min @ 414 kPa
•
Two or three hole mount
•
3/8" O.D. straight, staggered PEX supply tubes
•
Spout rotates 360˚
•
Control shall return to neutral position when
faucet is turned off
•
Red/blue indicator markings
•
Two-function wand; Aerated stream or spray
• Dual integral check valves in sprayer
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-K-978-DST Rev. G
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASME A112.18.6
Indicates compliance to
ICC/ANSI A117.1
•
Verified compliant with .25% weighted
average Pb content regulations
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2015 Masco Corporation of Indiana
