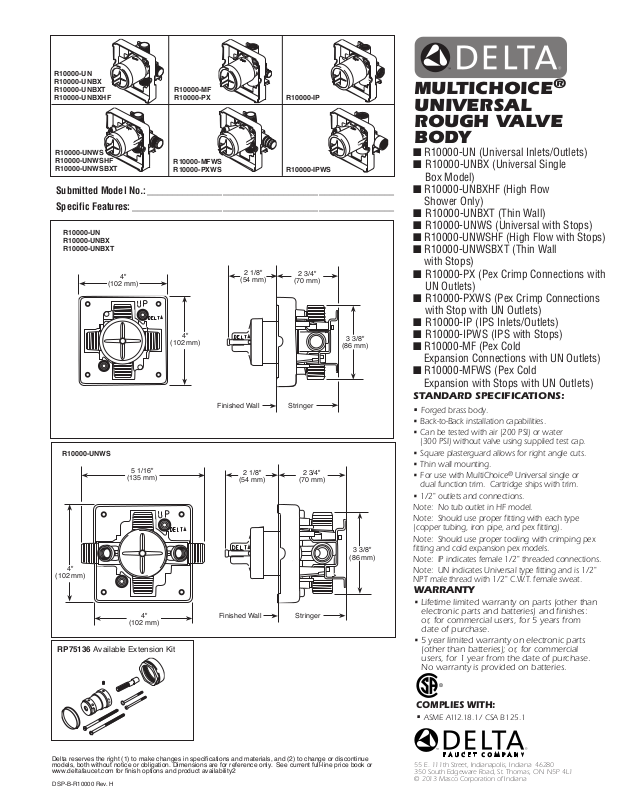

R10000-UN
R10000-UNBX
R10000-UNBXT
R10000-UNBXHF
R10000-UNWS
R10000-UNWSHF
R10000-UNWSBXT
R10000-MF
R10000-PX
R10000-MFWS
R10000-PXWS
R10000-IP
R10000-IPWS
Submitted Model No.: _________________________________________________
Specific Features: ____________________________________________________
R10000-UN
R10000-UNBX
R10000-UNBXT
4"
(102 mm)
R10000-UNWS
5 1/16"
(135 mm)
4"
(102 mm)
4"
(102 mm)
RP75136 Available Extension Kit
4"
(102 mm)
2 1/8"
(54 mm)
Finished Wall
2 1/8"
(54 mm)
2 3/4"
(70 mm)
Stringer
2 3/4"
(70 mm)
StringerFinished Wall
3 3/8"
(86 mm)
3 3/8"
(86 mm)
MULTICHOICE®
UNIVERSAL
ROUGH VALVE
BODY
■ R10000-UN (Universal Inlets/Outlets)
■ R10000-UNBX (Universal Single
Box Model)
■ R10000-UNBXHF (High Flow
Shower Only)
■ R10000-UNBXT (Thin Wall)
■ R10000-UNWS (Universal with Stops)
■ R10000-UNWSHF (High Flow with Stops)
■ R10000-UNWSBXT (Thin Wall
with Stops)
■ R10000-PX (Pex Crimp Connections with
UN Outlets)
■ R10000-PXWS (Pex Crimp Connections
with Stop with UN Outlets)
■ R10000-IP (IPS Inlets/Outlets)
■ R10000-IPWS (IPS with Stops)
■ R10000-MF (Pex Cold
Expansion Connections with UN Outlets)
■ R10000-MFWS (Pex Cold
Expansion with Stops with UN Outlets)
STANDARD SPECIFICATIONS:
•
Forged brass body.
• Back-to-Back installation capabilities.
• Can be tested with air (200 PSI) or water
(300 PSI) without valve using supplied test cap.
• Square plasterguard allows for right angle cuts.
• Thin wall mounting.
• For use with MultiChoice® Universal single or
dual function trim. Cartridge ships with trim.
• 1/2" outlets and connections.
Note: No tub outlet in HF model.
Note: Should use proper fitting with each type
(copper tubing, iron pipe, and pex fitting).
Note: Should use proper tooling with crimping pex
fitting and cold expansion pex models.
Note: IP indicates female 1/2" threaded connections.
Note: UN indicates Universal type fitting and is 1/2"
NPT male thread with 1/2" C.W.T. female sweat.
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability2
DSP-B-R10000 Rev. H
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2013 Masco Corporation of Indiana
