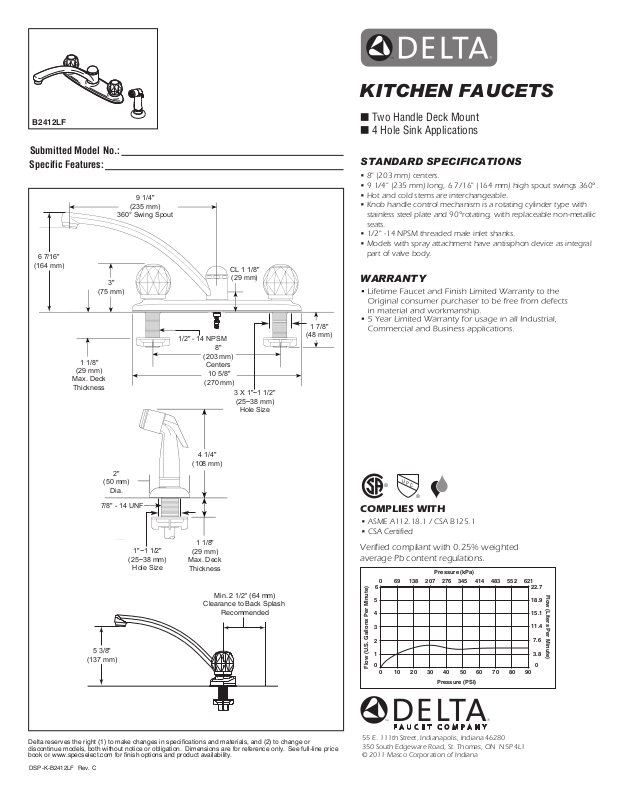

KITCHEN FAUCETS
B2412LF
Submitted Model No.:
Specific Features:
6 7/16"
(164 mm)
3"
(75 mm)
1 1/8"
(29 mm)
Max. Deck
Thickness
9 1/4"
(235 mm)
360° Swing Spout
1/2" - 14 NPSM
8"
(203 mm)
Centers
10 5/8"
(270 mm)
CL 1 1/8"
(29 mm)
3 X 1"~1 1/2"
(25~38 mm)
Hole Size
1 7/8"
1 7/8"
(48 mm)
(48 mm)
Two Handle Deck Mount
4 Hole Sink Applications
STANDARD SPECIFICATIONS
• 8" (203 mm) centers.
• 9 1/4" (235 mm) long, 6 7/16" (164 mm) high spout swings 360°.
• Hot and cold stems are interchangeable.
• Knob handle control mechanism is a rotating cylinder type with
stainless steel plate and 90°rotating, with replaceable non-metallic
seats.
• 1/2" -14 NPSM threaded male inlet shanks.
• Models with spray attachment have antisiphon device as integral
part of valve body.
WARRANTY
4 1/4"
(108 mm)
2"
(50 mm)
Dia.
7/8" - 14 UNF
1"~1 1/2"
(25~38 mm)
Hole Size
5 3/8"
(137 mm)
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or
discontinue models, both without notice or obligation. Dimensions are for reference only. See full-line price
book or www.specselect.com for finish options and product availability.
DSP-K-B2412LF Rev. C
1 1/8"
(29 mm)
Max. Deck
Thickness
Min. 2 1/2" (64 mm)
Clearance to Back Splash
Recommended
U
P
C
®
®
COMPLIES WITH
• ASME A112.18.1 / CSA B125.1
• CSA Certified
Verified compliant with 0.25% weighted
average Pb content regulations.
0 69 138 207 276 345 414 483 552 621
6
5
4
3
2
1
0
Flow (U.S. Gallons Per Minute)
0 10 20 30 40 50 60 70 80 90
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2011 Masco Corporation of Indiana
Pressure (kPa)
Pressure (PSI)
22.7
18.9
15.1
11.4
7.6
3.8
Flow (Liters Per Minute)
0
