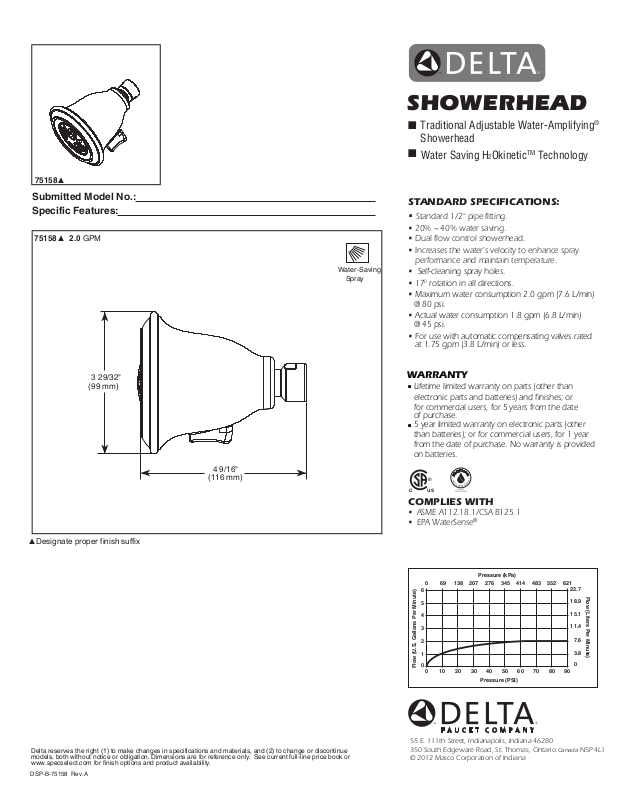

75158▲
Submitted Model No.:
Specific Features:
75158▲ 2.0 GPM
Water-Saving
Spray
SHOWERHEAD
n
Traditional Adjustable Water-Amplifying
Showerhead
n
Water Saving H Okinetic
2
STANDARD SPECIFICATIONS:
•
Standard 1/2" pipe fitting.
• 20% ~ 40% water saving.
• Dual flow control showerhead.
• Increases the water's velocity to enhance spray
performance and maintain temperature.
• Self-cleaning spray holes.
0
• 17
rotation in all directions.
• Maximum water consumption 2.0 gpm (7.6 L/min)
@ 80 psi.
• Actual water consumption 1.8 gpm (6.8 L/min)
@ 45 psi.
• For use with automatic compensating valves rated
at 1.75 gpm (3.8 L/min) or less.
TM
Technology
®
3 29/32"
(99 mm)
▲Designate proper finish suffix
4 9/16"
(116 mm)
WARRANTY
n
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes; or
for commercial users, for 5 years from the date
of purchase.
n
5 year limited warranty on electronic parts (other
than batteries); or for commercial users, for 1 year
from the date of purchase. No warranty is provided
on batteries.
®
US
C
COMPLIES WITH
• ASME A112.18.1/CSA B125.1
• EPA WaterSense
0 69 138 207 276 345 414 483 552 621
6
5
4
3
2
1
0
Flow (U.S. Gallons Per Minute)
0 10 20 30 40 50 60 70 80 90
®
Pressure (kPa)
Pressure (PSI)
22.7
Flow (Liters Per Minute)
18.9
15.1
11.4
7.6
3.8
0
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.specselect.com for finish options and product availability.
DSP-B-75158 Rev.A
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, Ontario
© 2012 Masco Corporation of Indiana
Canada N5P 4L1
