T17T051▲
Pressure (PSI)
T17T251▲
T17T451▲
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
7"
(178 mm)
Supply

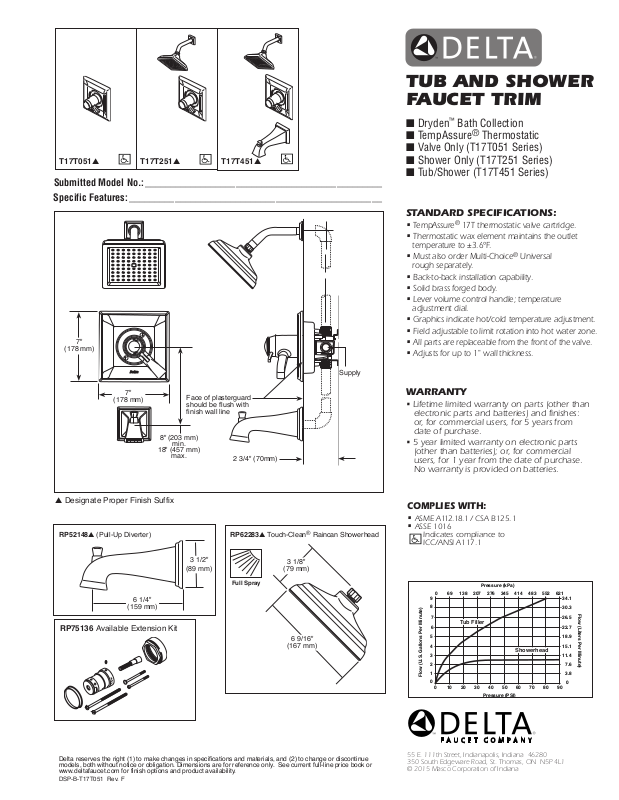

TUB AND SHOWER
FAUCET TRIM
■ Dryden™ Bath Collection
■ TempAssure® Thermostatic
■ Valve Only (T17T051 Series)
■ Shower Only (T17T251 Series)
■ Tub/Shower (T17T451 Series)
STANDARD SPECIFICATIONS:
•
TempAssure® 17T thermostatic valve cartridge.
•
Thermostatic wax element maintains the outlet
temperature to ±3.6ºF.
•
Must also order Multi-Choice® Universal
rough separately.
•
Back-to-back installation capability.
•
Solid brass forged body.
•
Lever volume control handle; temperature
adjustment dial.
•
Graphics indicate hot/cold temperature adjustment.
•
Field adjustable to limit rotation into hot water zone.
•
All parts are replaceable from the front of the valve.
•
Adjusts for up to 1" wall thickness.
7"
(178 mm)
8" (203 mm)
18" (457 mm)
▲ Designate Proper Finish Suffix
RP52148▲ (Pull-Up Diverter)
6 1/4"
(159 mm)
RP75136 Available Extension Kit
Face of plasterguard
should be flush with
finish wall line
min.
max.
3 1/2"
(89 mm)
2 3/4" (70mm)
RP62283▲ Touch-Clean® Raincan Showerhead
3 1/8"
(79 mm)
Full Spray
6 9/16"
(167 mm)
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASSE 1016
Indicates compliance to
ICC/ANSI A117.1
Tub Filler
Pressure (kPa)
Showerhead
34.1
30.3
Flow (Liters Per Minute)
26.5
22.7
18.9
15.1
11.4
7.6
3.8
0
069 138 207 276 345 414 483 552 621
9
8
7
6
5
4
3
2
1
Flow (U.S. Gallons Per Minute)
0
0102030405060708090
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T17T051 Rev. F
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2015 Masco Corporation of Indiana
