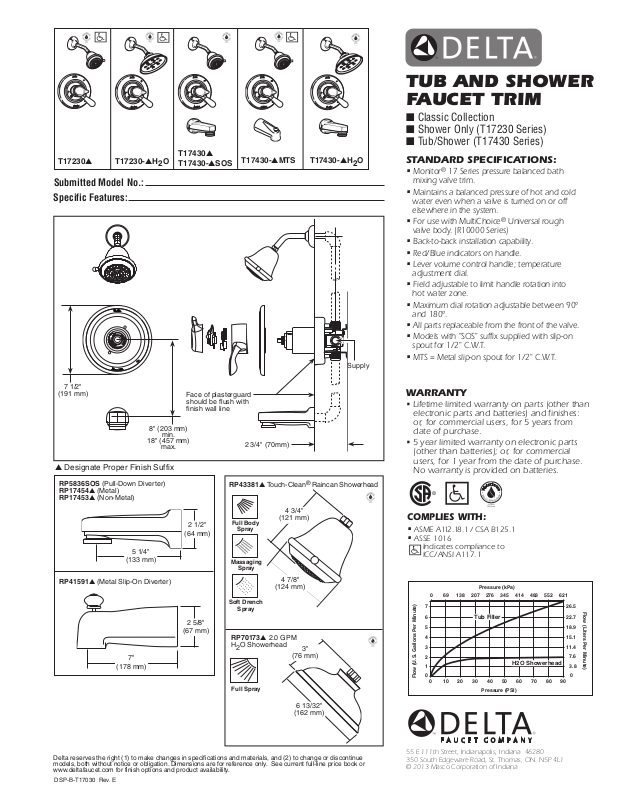

T17230▲
®
T17230-▲H2O
Submitted Model No.:
Specific Features:
T17430▲
T17430-▲SOS
T17430-▲MTS
T17430-▲H2O
Supply
Tub AND SHOWER
FAuCET TRIM
■ Classic Collection
■ Shower Only (T17230 Series)
■ Tub/Shower (T17430 Series)
StanDarD SPECIFICatIOnS:
•
Monitor® 17 Series pressure balanced bath
mixing valve trim.
•
Maintains a balanced pressure of hot and cold
water even when a valve is turned on or off
elsewhere in the system.
•
For use with MultiChoice® Universal rough
valve body. (R10000 Series)
•
Back-to-back installation capability.
•
Red/Blue indicators on handle.
•
Lever volume control handle; temperature
adjustment dial.
•
Field adjustable to limit handle rotation into
hot water zone.
•
Maximum dial rotation adjustable between 90º
and 180º.
•
All parts replaceable from the front of the valve.
•
Models with "SOS" suffix supplied with slip-on
spout for 1/2" C.W.T.
•
MTS = Metal slip-on spout for 1/2" C.W.T.
7 1/2"
(191 mm)
8" (203 mm)
min.
18" (457 mm)
max.
▲ Designate Proper Finish Suffix
RP5836SOS (Pull-Down Diverter)
RP17454▲ (Metal)
RP17453▲ (Non-Metal)
5 1/4"
(133 mm)
RP41591▲ (Metal Slip-On Diverter)
7"
(178 mm)
Face of plasterguard
should be flush with
finish wall line
RP43381▲ Touch-Clean® Raincan Showerhead
2 1/2"
(64 mm)
2 5/8"
(67 mm)
Full Body
Spray
Massaging
Soft Drench
Spray
RP70173▲ 2.0 GPM
H2O Showerhead
Full Spray
2 3/4" (70mm)
Spray
4 3/4"
(121 mm)
4 7/8"
(124 mm)
(76 mm)
6 13/32"
(162 mm)
Warranty
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WItH:
•
ASME A112.18.1 / CSA B125.1
•
ASSE 1016
Indicates compliance to
ICC/ANSI A117.1
069 138 207 276 345 414 483 552 621
7
6
5
4
3"
3
2
1
0
Flow (U.S. Gallons Per Minute)
0102030405060708090
Pressure (kPa)
Tub Filler
Pressure (PSI)
H2O Showerhead
26.5
Flow (Liters Per Minute)
22.7
18.9
15.1
11.4
7.6
3.8
0
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T17030 Rev. E
55 E 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2013 Masco Corporation of Indiana
