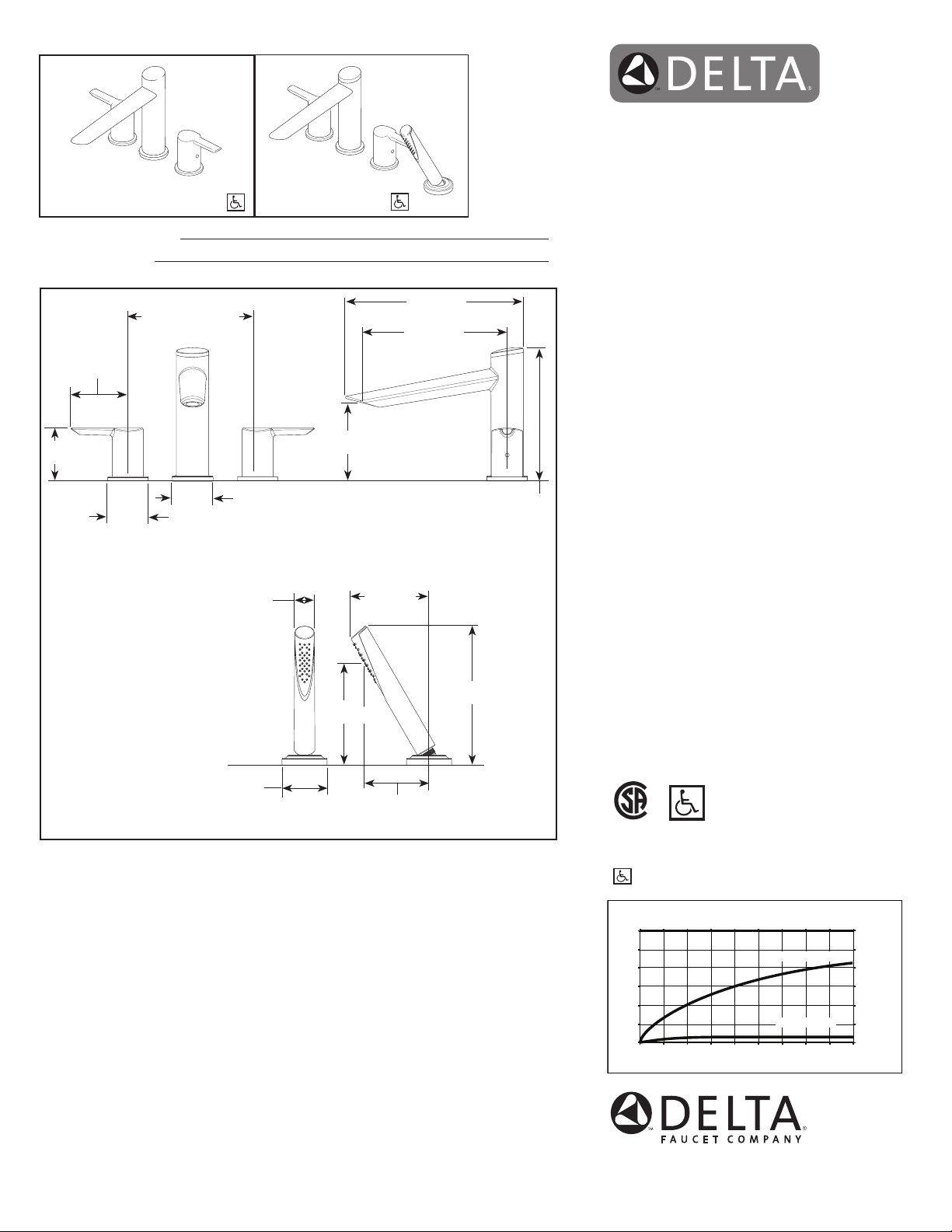

Hand Shower
Roman Tub
T2761▲
®
Submitted Model No.:
Specific Features:
(203 mm - 406mm)
Centers (Flexible)
3 1/2"
(89 mm)
3"
(76 mm)
2 1/2"
(64 mm)
Dia.
8" - 16"
2 9/16"
(65 mm)
Dia.
1 1/4"
(32 mm)
T4761▲
4 3/4"
(121 mm)
4 1/2"
(114 mm)
11"
(279 mm)
8 3/4"
(222 mm)
8 1/4"
(210 mm)

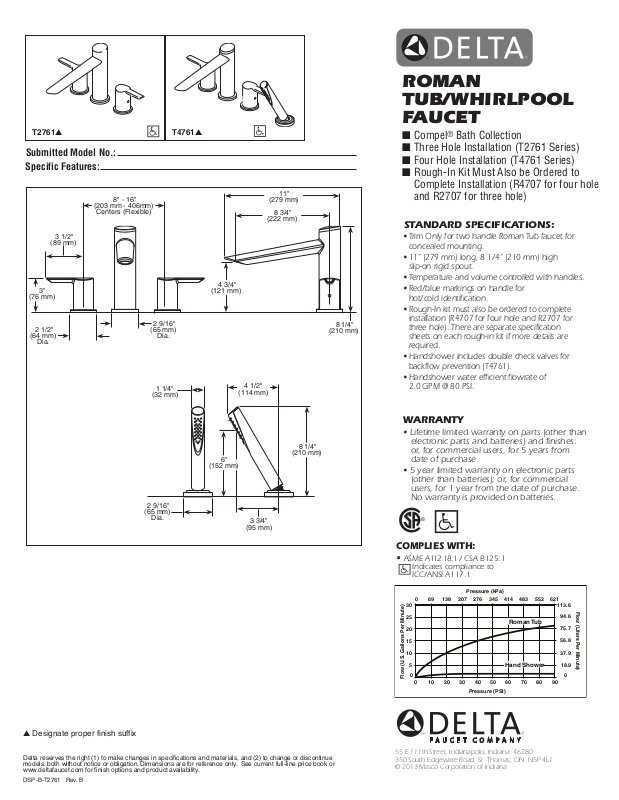

ROMAN
TUB/WHIRLPOOL
FAUCET
■ Compel® Bath Collection
■ Three Hole Installation (T2761 Series)
■ Four Hole Installation (T4761 Series)
■ Rough-In Kit Must Also be Ordered to
Complete Installation (R4707 for four hole
and R2707 for three hole)
StanDarD SPECIFICatIOnS:
• Trim Only for two handle Roman Tub faucet for
concealed mounting.
• 11” (279 mm) long, 8 1/4” (210 mm) high
slip-on rigid spout.
• Temperature and volume controlled with handles.
• Red/blue markings on handle for
hot/cold identification.
• Rough-In kit must also be ordered to complete
installation (R4707 for four hole and R2707 for
three hole). There are separate specification
sheets on each rough-in kit if more details are
required.
• Handshower includes double check valves for
backflow prevention (T4761).
• Handshower water efficient flowrate of
2.0 GPM @ 80 PSI.
8 1/4"
6"
(152 mm)
2 9/16"
(65 mm)
Dia.
▲ Designate proper finish suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T2761 Rev. B
3 3/4"
(95 mm)
(210 mm)
Warranty
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WItH:
•
ASME A112.18.1 / CSA B125.1
Indicates compliance to
ICC/ANSI A117.1
