T17059▲ T17259▲
= Adjustable H2Okinetic™ Spray (AH2O)
= Soft Full Spray (SF)
= Crossing Full Spray (CF)
= Crossing Full Spray w/Massage (CFM)
= Soft Drench Spray (SD)
= Pause (P)
= Full Body Spray (FB)
= Adjustable Full Spray (AF)
CF
CFM
AF
SF
FB
SD
P
= Massage Spray (M)
M
= Slow Massage (SM)
SM
AH
2
O
Flow (U.S. Gallons Per Minute)
T17459▲ T17259-▲LHD T17459-▲LHD
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
C/L
Supply
Lines
6 1/2"
(165 mm)
Dia.
Face of plasterguard
should be flush with
finish wall line
Supply
8" (203 mm)
min.
18" (457 mm)
max.

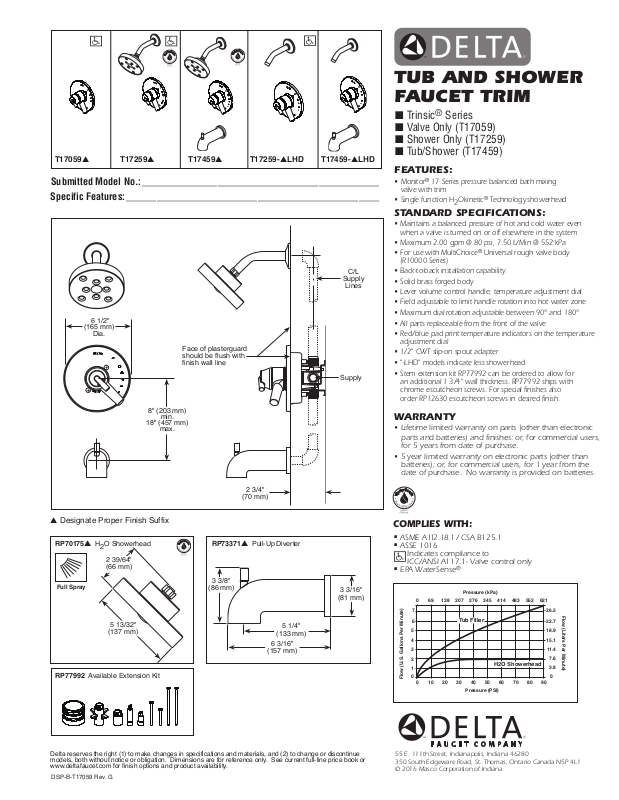

TUB AND SHOWER
FAUCET TRIM
■ Trinsic® Series
■Valve Only (T17059)
■Shower Only (T17259)
■Tub/Shower (T17459)
FEATURES:
• Monitor® 17 Series pressure balanced bath mixing
valve with trim
• Single function H2Okinetic
STANDARD SPECIFICATIONS:
• Maintains a balanced pressure of hot and cold water even
when a valve is turned on or off elsewhere in the system
• Maximum 2.00 gpm @ 80 psi, 7.50 L/Min @ 552 kPa
• For use with MultiChoice
(R10000 Series)
• Back-to-back installation capability
• Solid brass forged body
• Lever volume control handle; temperature adjustment dial
• Field adjustable to limit handle rotation into hot water zone
• Maximum dial rotation adjustable between 90° and 180°
• All parts replaceable from the front of the valve
• Red/blue pad print temperature indicators on the temperature
adjustment dial
• 1/2" CWT slip-on spout adapter
• "-LHD" models indicate less showerhead
• Stem extension kit RP77992 can be ordered to allow for
an additional 1 3/4" wall thickness. RP77992 ships with
chrome escutcheon screws. For special finishes also
order RP12630 escutcheon screws in desired finish.
WARRANTY
•
Lifetime limited warranty on parts (other than electronic
parts and batteries) and finishes: or, for commercial users,
for 5 years from date of purchase.
•
5 year limited warranty on electronic parts (other than
batteries); or, for commercial users, for 1 year from the
date of purchase. No warranty is provided on batteries.
®
Technology showerhead
®
Universal rough valve body
▲ Designate Proper Finish Suffix
RP70175▲ H2O Showerhead
Full Spray
RP77992 Available Extension Kit
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T17059 Rev. G
2 39/64"
(66 mm)
5 13/32"
(137 mm)
2 3/4"
(70 mm)
RP73371▲ Pull-Up Diverter
3 3/8"
(86 mm)
5 1/4"
(133 mm)
6 3/16"
(157 mm)
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASSE 1016
Indicates compliance to
ICC/ANSI A117.1- Valve control only
•
3 3/16"
(81 mm)
EPA WaterSense
069 138 207 276 345 414 483 552 621
7
6
5
4
3
2
1
0
0102030405060708090
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, Ontario Canada N5P 4L1
© 2016 Masco Corporation of Indiana
®
Pressure (kPa)
Tub Filler
Pressure (PSI)
H2O Showerhead
26.5
Flow (Liters Per Minute)
22.7
18.9
15.1
11.4
7.6
3.8
0
