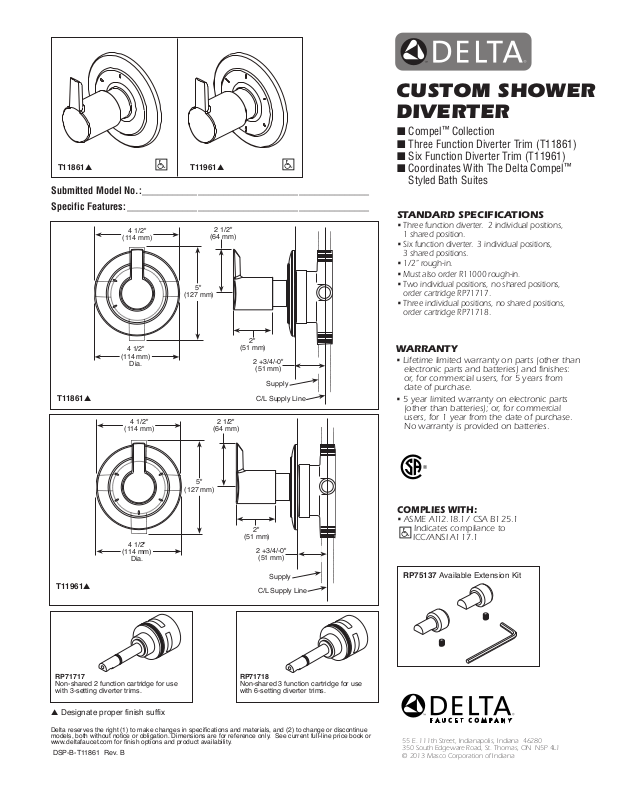

Delta DLT6470 Specifications

®
T11861
T11961
Submitted Model No.: _____________________________________________
Specific Features: ________________________________________________
5"
2 1/2"
(64 mm)
2 1/2"
(64 mm)
2"
(51 mm)
2 +3/4/-0"
(51 mm)
C/L Supply Line
Supply
T11861
4 1/2"
(114 mm)
4 1/2"
(114 mm)
Dia.
4 1/2"
(114 mm)
(127 mm)
CUSTOM SHOWER DIVERTER
Compel™ Collection
Three Function Diverter Trim (T11861)
Six Function Diverter Trim (T11961)
Coordinates With The Delta Compel
Styled Bath Suites
STANDARD SPECIFICATIONS
• Three function diverter. 2 individual positions, 1 shared position.
• Six function diverter. 3 individual positions, 3 shared positions.
• 1/2” rough-in.
• Must also order R11000 rough-in
• Two individual positions, no shared positions, order cartridge RP71717.
• Three individual positions, no shared positions, order cartridge RP71718.
WARRANTY
Lifetime limited warranty on parts (other than electronic parts and batteries) and finishes: or, for commercial users, for 5 years from date of purchase.
5 year limited warranty on electronic parts (other than batteries); or, for commercial users, for 1 year from the date of purchase. No warranty is provided on batteries.
.
5"
(127 mm)
2"
4 1/2"
(114 mm)
Dia.
T11961
RP71717
Non-shared 2 function cartridge for use with 3-setting diverter trims.
Designate proper finish suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or www.deltafaucet.com for finish options and product availability.
DSP-B-T11861 Rev. B
(51 mm)
2 +3/4/-0"
(51 mm)
Supply
C/L Supply Line
RP71718
Non-shared 3 function cartridge for use with 6-setting diverter trims.
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
Indicates compliance to
ICC/ANSI A117.1
RP75137 Available Extension Kit
55 E. 111th Street, Indianapolis, Indiana 46280 350 South Edgeware Road, St. Thomas, ON N5P 4L1 © 2013 Masco Corporation of Indiana
