Page 1
144913
0
1
2
3
4
5
0 10 20 30 40 50 60 70 80 90
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
0 69 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow (Liters Per Minute)
Showerhead
7
26.5
Tub Filler
®
®
U
P
C
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________

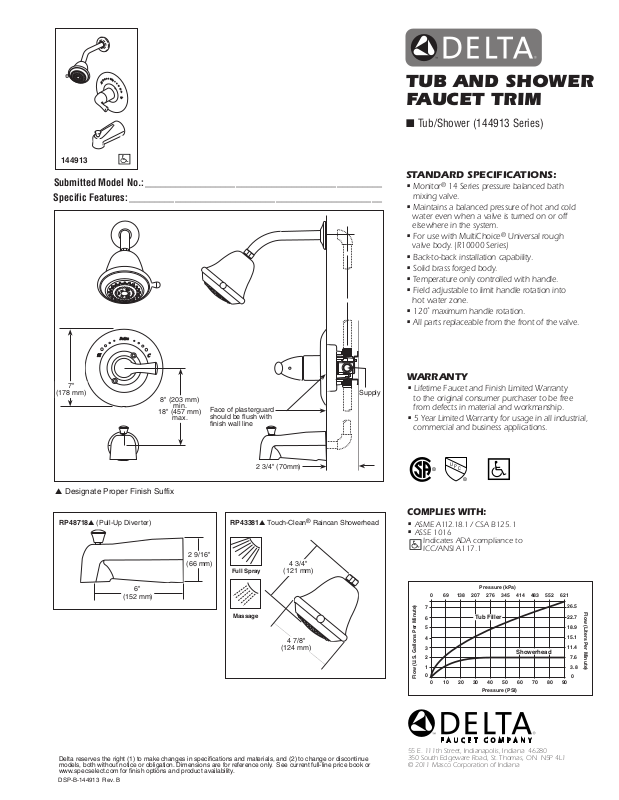

Tub AND SHOWER
FAuCET TRIM
■ Tub/Shower (144913 Series)
STANDARD SPECIFICATIONS:
•
Monitor® 14 Series pressure balanced bath
mixing valve.
•
Maintains a balanced pressure of hot and cold
water even when a valve is turned on or off
elsewhere in the system.
•
For use with MultiChoice® Universal rough
valve body. (R10000 Series)
•
Back-to-back installation capability.
•
Solid brass forged body.
•
Temperature only controlled with handle.
•
Field adjustable to limit handle rotation into
hot water zone.
•
120˚ maximum handle rotation.
•
All parts replaceable from the front of the valve.
7"
(178 mm)
8" (203 mm)
18" (457 mm)
▲ Designate Proper Finish Suffix
RP48718▲ (Pull-Up Diverter)
6"
(152 mm)
min.
max.
Face of plasterguard
should be flush with
finish wall line
2 9/16"
(66 mm)
Supply
2 3/4" (70mm)
RP43381▲ Touch-Clean® Raincan Showerhead
4 3/4"
Full Spray
Massage
(121 mm)
4 7/8"
(124 mm)
WARRANTy
•
Lifetime Faucet and Finish Limited Warranty
to the original consumer purchaser to be free
from defects in material and workmanship.
•
5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASSE 1016
Indicates ADA compliance to
ICC/ANSI A117.1
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.specselect.com for finish options and product availability.
DSP-B-144913 Rev. B
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2011 Masco Corporation of Indiana
