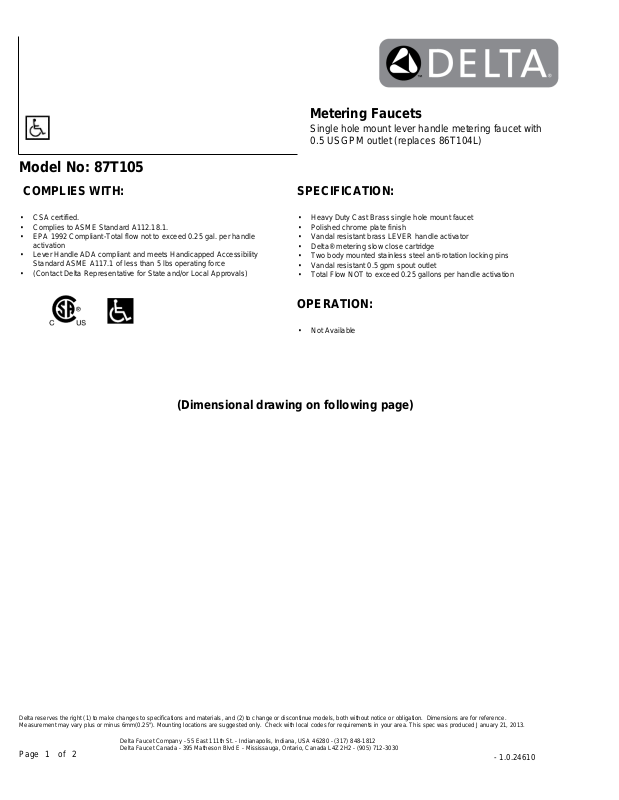

Page 1
Model No: 87T105
SPECIFICATION:
•
Heavy Duty Cast Brass single hole mount faucet
•
Polished chrome plate finish
•
Vandal resistant brass LEVER handle activator
•
Delta® metering slow close cartridge
•
Two body mounted stainless steel anti-rotation locking pins
•
Vandal resistant 0.5 gpm spout outlet
•
Total Flow NOT to exceed 0.25 gallons per handle activation
COMPLIES WITH:
•
CSA certified.
•
Complies to ASME Standard A112.18.1.
•
EPA 1992 Compliant-Total flow not to exceed 0.25 gal. per handle
activation
•
Lever Handle ADA compliant and meets Handicapped Accessibility
Standard ASME A117.1 of less than 5 lbs operating force
•
(Contact Delta Representative for State and/or Local Approvals)

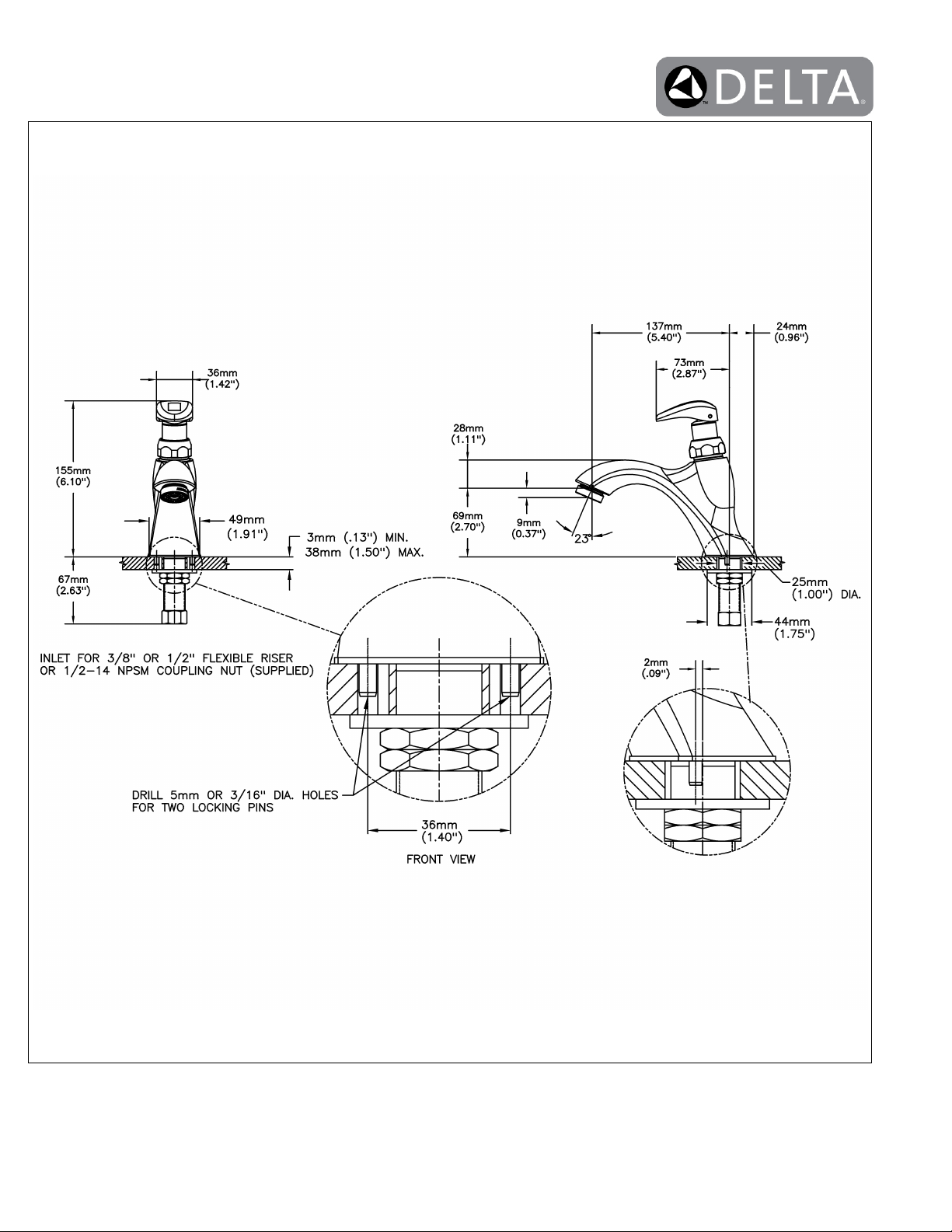

(Dimensional drawing on following page)
•
Not Available
OPERATION:
Delta Faucet Company - 55 East 111th St. - Indianapolis, Indiana, USA 46280 - (317) 848-1812
Metering Faucets
Single hole mount lever handle metering faucet with
0.5 USGPM outlet (replaces 86T104L)
Delta reserves the right (1) to make changes to specifications and materials, and (2) to change or discontinue models, both without notice or obligation. Dimensions are for reference.
Measurement may vary plus or minus 6mm(0.25"). Mounting locations are suggested only. Check with local codes for requirements in your area. This spec was produced January 21, 2013.
Page of1 2
Delta Faucet Canada - 395 Matheson Blvd E - Mississauga, Ontario, Canada L4Z 2H2 - (905) 712-3030
Page 2
Model No: 87T105
Delta Faucet Company - 55 East 111th St. - Indianapolis, Indiana, USA 46280 - (317) 848-1812
Delta reserves the right (1) to make changes to specifications and materials, and (2) to change or discontinue models, both without notice or obligation. Dimensions are for reference.
Measurement may vary plus or minus 6mm(0.25"). Mounting locations are suggested only. Check with local codes for requirements in your area. This spec was produced January 21, 2013.
Page of2 2
Delta Faucet Canada - 395 Matheson Blvd E - Mississauga, Ontario, Canada L4Z 2H2 - (905) 712-3030
