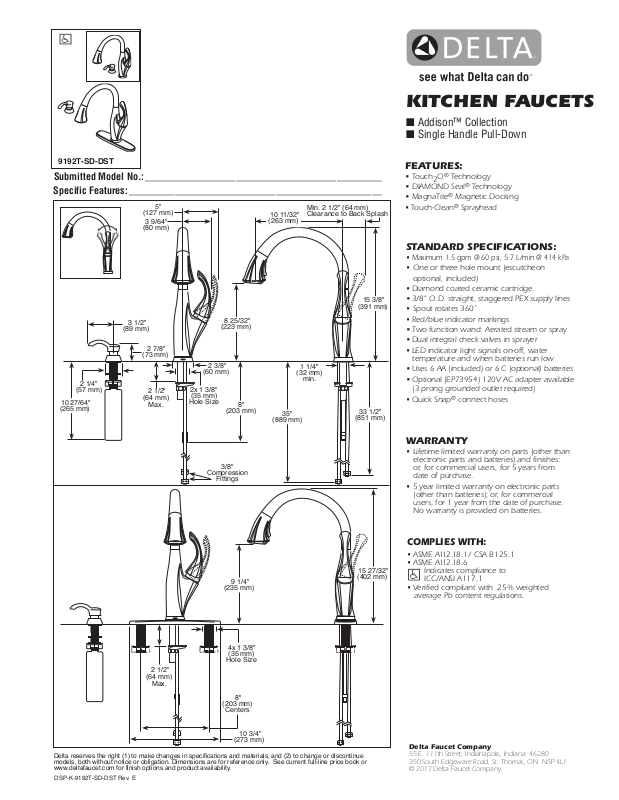

KITCHEN FAUCETS
■ Addison™ Collection
■ Single Handle Pull-Down
9192T-SD-DST
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
2 1/4"
(57 mm)
10 27/64"
(265 mm)
5"
(127 mm)
3 9/64"
(80 mm)
H
C
3 1/2"
(89 mm)
2 7/8"
(73 mm)
2 1/2"
(64 mm)
Max.
2x 1 3/8"
(35 mm)
Hole Size
8 25/32"
(223 mm)
2 3/8"
2 39/64"
(60 mm)
(66 mm)
(203 mm)
3/8"
Compression
Fittings
10 11/32"
(263 mm)
8"
(889 mm)
Min. 2 1/2" (64 mm)
Clearance to Back Splash
1 1/4"
(32 mm)
min.
35"
15 3/8"
(391 mm)
33 1/2"
(851 mm)
FEATURES:
• Touch2O® Technology
• DIAMOND Seal
• MagnaTite® Magnetic Docking
•
Touch-Clean® Sprayhead
®
Technology
STANDARD SPECIFICATIONS:
• Maximum 1.5 gpm @ 60 psi, 5.7 L/min @ 414 kPa
One or three hole mount (escutcheon
•
optional, included)
•
Diamond coated ceramic cartridge.
• 3/8" O.D. straight, staggered PEX supply lines
•
Spout rotates 360˚
•
Red/blue indicator markings
• Two function wand: Aerated stream or spray
• Dual integral check valves in sprayer
•
LED indicator light signals on-off, water
temperature and when batteries run low
• Uses 6 AA (included) or 6 C (optional) batteries
• Optional (EP73954) 120V AC adapter available
(3 prong grounded outlet required)
•
Quick Snap® connect hoses
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
15 27/32"
9 1/4"
(235 mm)
4x 1 3/8"
(35 mm)
Hole Size
2 1/2"
(64 mm)
Max.
8"
(203 mm)
Centers
10 3/4"
(273 mm)
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-K-9192T-SD-DST Rev. E
(402 mm)
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASME A112.18.6
Indicates compliance to
ICC/ANSI A117.1
•
Verified compliant with .25% weighted
average Pb content regulations.
Delta Faucet Company
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2017 Delta Faucet Company
