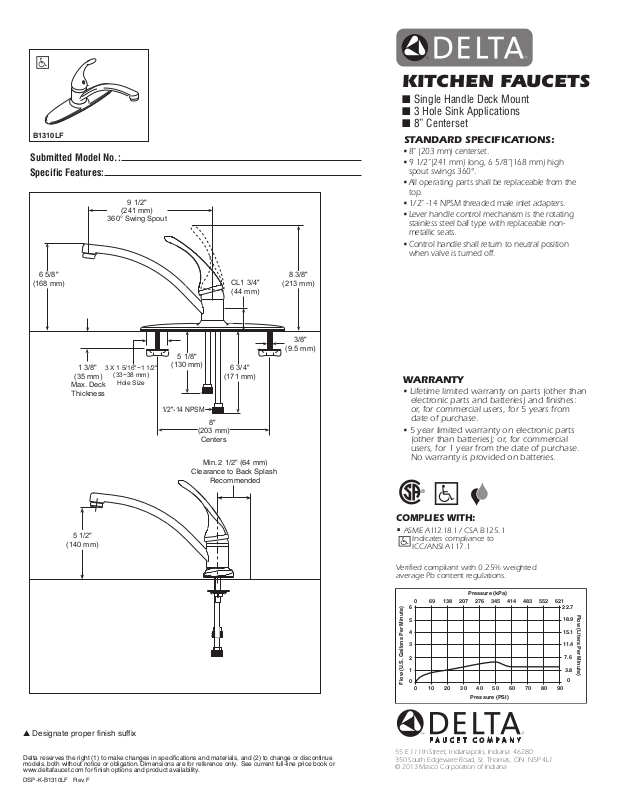

KITCHEN FAUCETS
STANDARD SPECIFICATIONS
Single Handle Deck Mount
3 Hole Sink Applications
8" Centerset
0
1
2
3
4
5
0 10 20 30 40 50 60 70 80 90
P res s ure (P SI )
Fl ow ( U.S . Ga llo ns Pe r Mi nute )
6
0 69 138 207 276 345 414 483 552 621
0
3.8
7.6
11. 4
15. 1
18. 9
22. 7
P res s ure (kP a)
Fl ow ( Li ters P er Minu te)
B1310LF
• 8" (203 mm) centerset.
• 9 1/2"(241 mm) long, 6 5/8" (168 mm) high spout swings 360°.
• All operating parts shall be replaceable from the top.
• 1/2" -14 NPSM threaded male inlet adapters.
• Lever handle. Control mechanism is the rotating stainless steel ball
type with replaceable non-metallic seats.
• Control handle shall return to neutral position when valve is
turned off.
COMPLIES WITH
• ASME A112.18.1 / CSA B125.1
Indicates compliance to
ICC / ANSI A117.1
• CSA Certified
®
®
U
P
C
Verified compliant with 0.25% weighted
average Pb content regulations.
WARRANTY
Lifetime limited warranty on parts (other than electronic parts and
batteries) and finishes; orfor commercial users, for 5 years from the
date of purchase.
■
5 year limited warranty on electronic parts (other than batteries);
or for commercial users, for 1 year from the date of purchase.
No warranty is provided on batteries.
■
0
1
2
3
4
5
0102030405060708090
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
069138 207 276345 414483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow (Liters Per Minute)
®
Submitted Model No.:
Specific Features:
360° Swing Spout
9 1/2"
(241 mm)
KITCHEN FAUCETS
■ Single Handle Deck Mount
■ 3 Hole Sink Applications
■ 8” Centerset
StanDarD SPECIFICatIOnS:
• 8” (203 mm) centerset.
• 9 1/2”(241 mm) long, 6 5/8”(168 mm) high
spout swings 360°.
• All operating parts shall be replaceable from the
top.
• 1/2” -14 NPSM threaded male inlet adapters.
• Lever handle control mechanism is the rotating
stainless steel ball type with replaceable nonmetallic seats.
• Control handle shall return to neutral position
when valve is turned off.
6 5/8"
(168 mm)
1 3/8"
(35 mm)
Max. Deck
Thickness
5 1/2"
(140 mm)
3 X 1 5/16"~1 1/2"
(33~38 mm)
Hole Size
5 1/8"
(130 mm)
1/2"-14 NPSM
8"
(203 mm)
Centers
Min. 2 1/2" (64 mm)
Clearance to Back Splash
Recommended
(171 mm)
CL1 3/4"
(44 mm)
6 3/4"
8 3/8"
(213 mm)
3/8"
(9.5 mm)
Warranty
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WItH:
•
ASME A112.18.1 / CSA B125.1
Indicates compliance to
ICC/ANSI A117.1
Verified compliant with 0.25% weighted
average Pb content regulations.
▲ Designate proper finish suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-K-B1310LF Rev. F
55 E 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2013 Masco Corporation of Indiana
