0
1
2
3
4
5
0102030405060708090
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
069 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow (Liters Per Minute)
®�

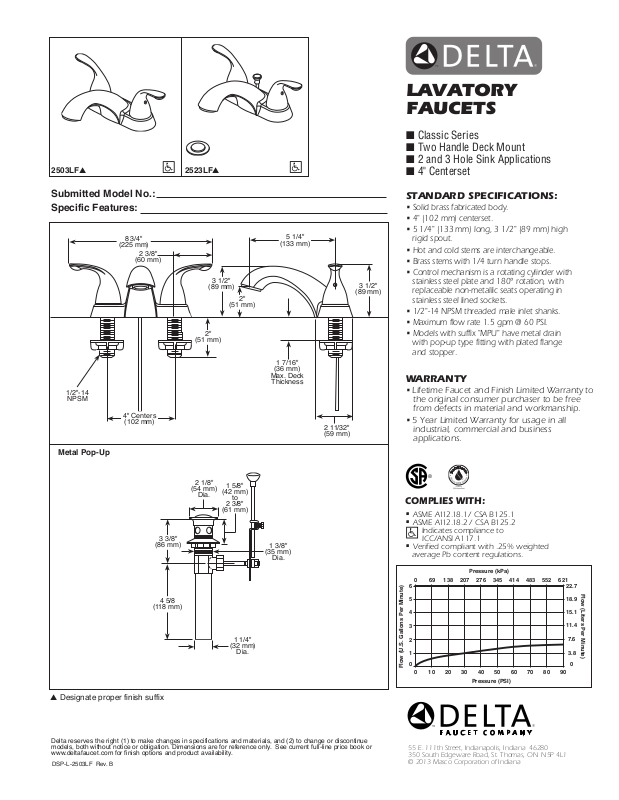

2503LF▲ 2523LF▲
LAVATORY
FAUCETS
■ Classic Series
■ Two Handle Deck Mount
■ 2 and 3 Hole Sink Applications
■ 4" Centerset
Submitted Model No.:
Specific Features:
8 3/4"
(225 mm)
2 3/8"
(60 mm)
1/2"-14
NPSM
4" Centers
(102 mm)
Metal Pop-Up
3 3/8"
(86 mm)
(89 mm)
2"
(51 mm)
2 1/8"
(54 mm)
Dia.
3 1/2"
(42 mm)
(61 mm)
2"
(51 mm)
1 5/8"
to
2 3/8"
5 1/4"
(133 mm)
1 7/16"
(36 mm)
Max. Deck
Thickness
1 3/8"
(35 mm)
Dia.
2 11/32"
(59 mm)
3 1/2"
(89 mm)
STANDARD SPECIFICATIONS:
• Solid brass fabricated body.
• 4" (102 mm) centerset.
• 5 1/4" (133 mm) long, 3 1/2" (89 mm) high
rigid spout.
• Hot and cold stems are interchangeable.
• Brass stems with 1/4 turn handle stops.
• Control mechanism is a rotating cylinder with
stainless steel plate and 180° rotation, with
replaceable non-metallic seats operating in
stainless steel lined sockets.
• 1/2"-14 NPSM threaded male inlet shanks.
• Maximum flow rate 1.5 gpm @ 60 PSI.
• Models with suffix "MPU" have metal drain
with pop-up type fitting with plated flange
and stopper.
WARRANTY
•
Lifetime Faucet and Finish Limited Warranty to
the original consumer purchaser to be free
from defects in material and workmanship.
•
5 Year Limited Warranty for usage in all
industrial, commercial and business
applications.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASME A112.18.2 / CSA B125.2
Indicates compliance to
ICC/ANSI A117.1
•
Verified compliant with .25% weighted
average Pb content regulations.
▲ Designate proper finish suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-L-2503LF Rev. B
4 5/8
(118 mm)
1 1/4"
(32 mm)
Dia.
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2013 Masco Corporation of Indiana
