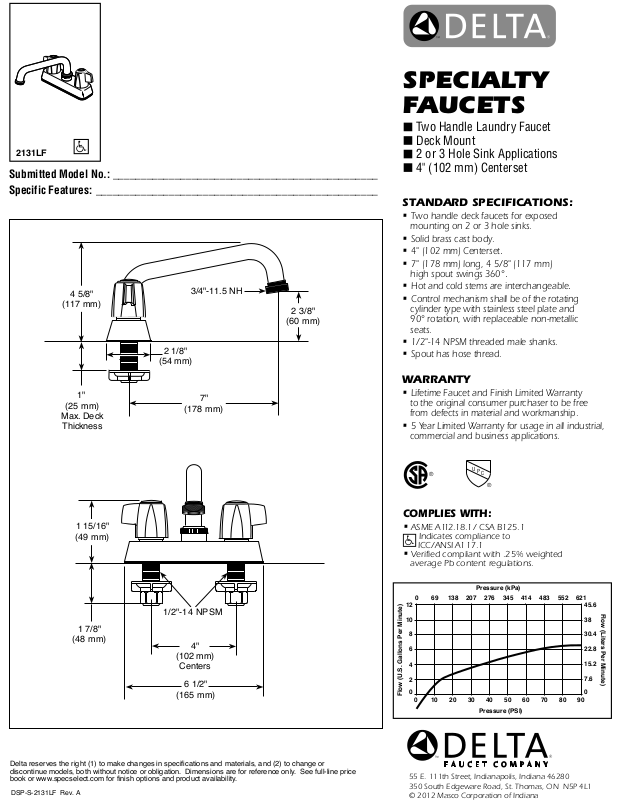

Page 1
2131LF
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
4 5/8"
(117 mm)
(54 mm)
3/4"-11.5 NH
2 3/8"
(60 mm)
2 1/8"
SPECIALTY
FAUCETS
Two Handle Laundry Faucet
Deck Mount
2 or 3 Hole Sink Applications
4" (102 mm) Centerset
STANDARD SPECIFICATIONS:
• Two handle deck faucets for exposed
mounting on 2 or 3 hole sinks.
• Solid brass cast body.
• 4" (102 mm) Centerset.
•
7" (178 mm) long, 4 5/8" (117 mm)
high spout swings 360°
•
Hot and cold stems are interchangeable.
•
Control mechanism shall be of the rotating
cylinder type with stainless steel plate and
90° rotation, with replaceable non-metallic
seats.
• 1/2"-14 NPSM threaded male shanks.
• Spout has hose thread.
.
1"
(25 mm)
Max. Deck
Thickness
1 15/16"
(49 mm)
1 7/8"
(48 mm)
WARRANTY
7"
(178 mm)
• Lifetime Faucet and Finish Limited Warranty
to the original consumer purchaser to be free
from defects in material and workmanship.
• 5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
U
P
®
C
®
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
1/2"-14 NPSM
4"
(102 mm)
Centers
6 1/2"
(165 mm)
•
Indicates compliance to
ICC/ANSI A117.1
•
average Pb content regulations.
0 69 138 207 276 345 414 483 552 621
12
10
8
6
4
2
0
Flow (U.S. Gallons Per Minute)
0 10 20 30 40 50 60 70 80 90
Pressure (kPa)
Pressure (PSI)
dethgiew %52. htiw tnailpmoc deifireV
45.6
Flow (
38
L
iters
30.4
22.8
Per
M
15.2
inute)
7.6
0
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or
discontinue models, both without notice or obligation. Dimensions are for reference only. See full-line price
book or www.specselect.com for finish options and product availability.
DSP-S-2131LF Rev. A
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2012 Masco Corporation of Indiana
