Optional 6 1/2"
Escutcheon

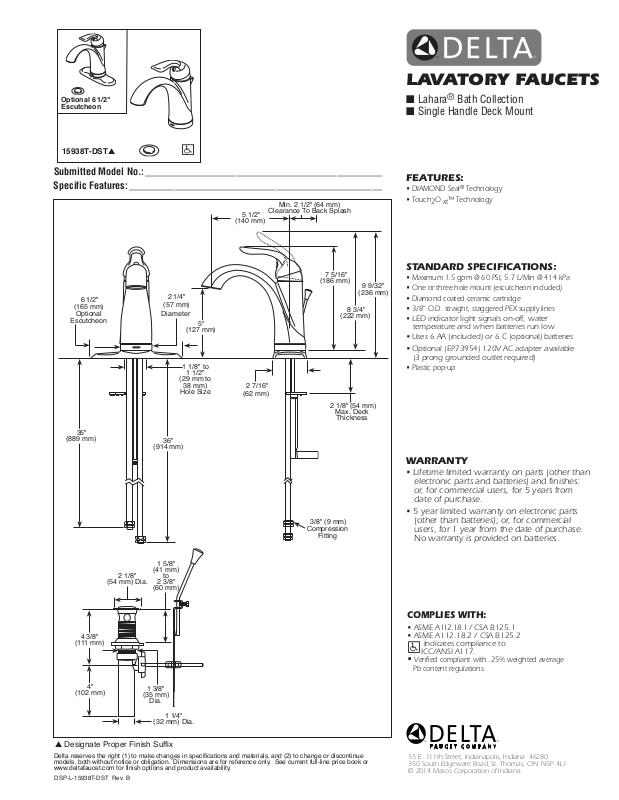

15938T-DST▲
LAVATORY FAUCETS
■ Lahara® Bath Collection
■ Single Handle Deck Mount
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
Min. 2 1/2" (64 mm)
Clearance To Back Splash
5 1/2"
(140 mm)
7 5/16"
6 1/2"
(165 mm)
Optional
Escutcheon
35"
(889 mm)
2 1/4"
(57 mm)
Diameter
36"
(914 mm)
5"
(127 mm)
1 1/8" to
1 1/2"
(29 mm to
38 mm)
Hole Size
2 7/16"
(62 mm)
(186 mm)
2 1/8" (54 mm)
3/8" (9 mm)
Compression
Fitting
(236 mm)
8 3/4"
(222 mm)
Max. Deck
Thickness
9 9/32"
FEATURES:
• DIAMOND Seal® Technology
• Touch2O.xt™ Technology
STANDARD SPECIFICATIONS:
• Maximum 1.5 gpm @ 60 PSI, 5.7 L/Min @ 414 kPa
• One or three hole mount (escutcheon included)
• Diamond coated ceramic cartridge
• 3/8" O.D. straight, staggered PEX supply lines
•
LED indicator light signals on-off, water
temperature and when batteries run low
• Uses 6 AA (included) or 6 C (optional) batteries
• Optional (EP73954) 120V AC adapter available
(3 prong grounded outlet required)
• Plastic pop-up
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
1 5/8"
(41 mm)
to
2 3/8"
(60 mm)
1 3/8"
(35 mm)
Dia.
(32 mm) Dia.
1 1/4"
4 3/8"
(111 mm)
4"
(102 mm)
2 1/8"
(54 mm) Dia.
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-L-15938T-DST Rev. B
COMPLIES WITH:
• ASME A112.18.1 / CSA B125.1
• ASME A112.18.2 / CSA B125.2
Indicates compliance to
ICC/ANSI A117.
•
Verified compliant with .25% weighted average
Pb content regulations.
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2014 Masco Corporation of Indiana
