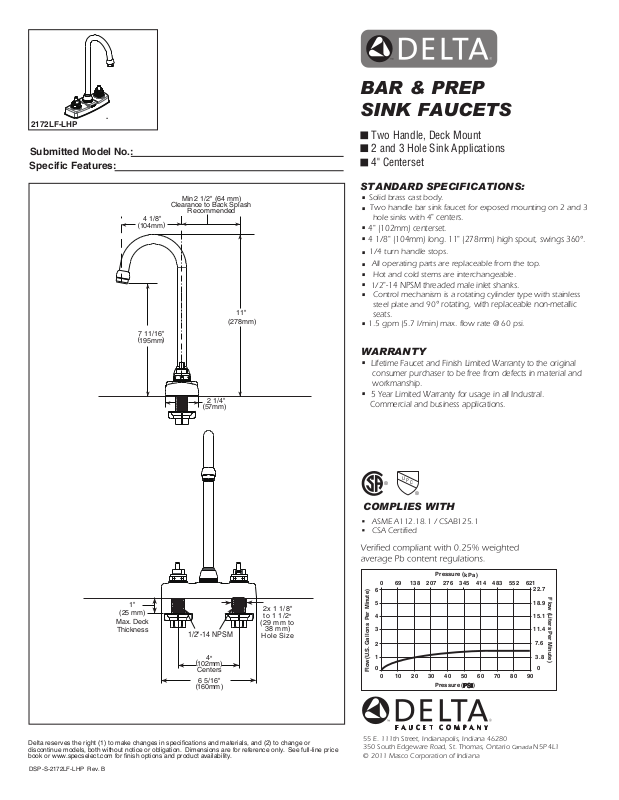

2172LF-LHP
Submitted Model No.:
Specific Features:
4 1/8
)
104mm
7 11/16"
)
195mm
Min 2 1/2" (64 mm)
Clea
rance to Back Splash
Recommended
"
)
)
2 1/4"
)
57mm
11"
(278mm)
)
BAR & PREP
SINK FAUCETS
Two Handle, Deck Mount
2 and 3 Hole Sink Applications
4" Centerset
STANDARD SPECIFICATIONS:
Solid brass cast body.
•
Two handle bar sink faucet for exposed mounting on 2 and 3
•
hole sinks with 4
4" (102mm) centerset.
•
• 4 1/8" (104mm) long. 11" (278mm) high spout, swings 360°.
1/4 turn handle stops.
•
All operating parts are replaceable from the top.
•
Hot and cold stems are interchangeable.
•
1/2
"-14 NPSM threaded male inlet shanks.
•
Control mechanism is a rotating cylinder type with stainless
•
steel plate and 90
seats.
1.5 gpm (5.7 l/min) max. flow rate @ 60 psi.
•
WARRANTY
• Lifetime Faucet and Finish Limited Warranty to the original
consumer purchaser to be free from defects in
workmanship.
• 5 Year Limited Warranty for usage in all Industral.
Commercial and business applications.
" centers.
° rotating, with replaceable non-metallic
material and
1"
(25 mm)
Max. Deck
Thickness
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or
discontinue models, both without notice or obligation. Dimensions are for reference only. See full-line price
book or www.specselect.com for finish options and product availability.
DSP-S-2172LF-LHP Rev. B
1/2"-14 NPSM
4
"
)
)
102mm
Centers
6 5/16
"
)
)
160mm
2x 1 1/8"
to 1 1/2
"
(29 m m to
38 m m)
Hole S ize
U
P
C
®
®
COMPLIES WITH
• ASME A112.18.1 / CSAB125.1
• CSA Certified
)
Pressure
Pressure
kP a)
)
PSI
)
0 69 138 207 276 345 414 483 552 621
6
5
4
3
2
1
0
Flow (U.S. Gall ons Per M inute)
0 10 20 30 40 50 60 70 80 90
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, Ontario
© 2011 Masco Corporation of Indiana
22. 7
F low (
18. 9
Lite
15. 1
rs Per Minute
11. 4
7.6
3.8
)
0
Canada N5P 4L1
