0
1
2
3
4
5
0 10 20 30 40 50 60 70 80 90
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
0 69 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow (Liters Per Minute)
®
®
U
P
C
500-DST
501-DST
502-DST
500-WCS-DST
520-DST
522-DST
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
1/2"
"
2
(51 mm)
3/8"
1
(35 mm)
1 11/16"
43 mm)
(
7/8"
4
(124 mm)
6 9/16"
(167 mm)
4"
(102 mm)
51 mm)
(
2" (51 mm)
Max. Deck
Thickness
2"
2
(60 mm)
"
5
(127 mm)
3/8"
5
(140 mm)

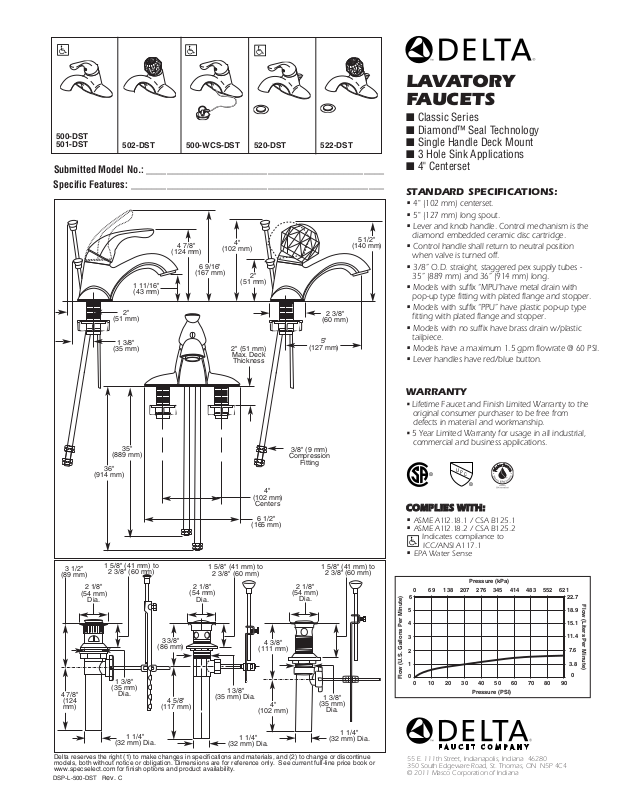

LAVATORY
FAUCETS
■ Classic Series
■ Diamond™ Seal Technology
■ Single Handle Deck Mount
■ 3 Hole Sink Applications
■ 4" Centerset
STANDARD SPECIFICATIONS:
" (102 mm) centerset.
• 4
• 5" (127 mm) long spout.
• Lever and knob handle. Control mechanism is the
diamond embedded ceramic disc cartridge.
• Control handle shall return to neutral position
when valve is turned off.
• 3/8” O.D. straight, staggered pex supply tubes -
35” (889 mm) and 36” (914 mm) long.
• Models with suffix “MPU”have metal drain with
pop-up type fitting with plated flange and stopper.
• Models with suffix “PPU” have plastic pop-up type
fitting with plated flange and stopper.
• Models with no suffix have brass drain w/plastic
tailpiece.
• Models have a maximum 1.5 gpm flowrate @ 60 PSI.
• Lever handles have red/blue button.
35"
(889 mm)
36"
(914 mm)
3 1/2"
(89 mm)
4 7/8"
(124
mm)
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.specselect.com for finish options and product availability.
DSP-L-500-DST Rev. C
1 5/8" (41 mm) to
2 1/8"
(54 mm)
Dia.
2 3/8" (60 mm)
1 3/8"
(35 mm)
Dia.
1 1/4"
(32 mm) Dia.
3 3/8"
(86 mm)
4 5/8"
(117 mm)
2 1/8"
(54 mm)
Dia.
(102 mm)
Centers
(165 mm)
1 5/8" (41 mm) to
2 3/8" (60 mm)
1 3/8"
(35 mm) Dia.
1 1/4"
(32 mm) Dia.
4"
6 1/2"
4 3/8"
(111 mm)
4"
(102 mm)
3/8" (9 mm)
Compression
Fitting
1 5/8" (41 mm) to
2 1/8"
(54 mm)
Dia.
(35 mm)
2 3/8" (60 mm)
1 3/8"
Dia.
1 1/4"
(32 mm) Dia.
WARRANTY
• Lifetime Faucet and Finish Limited Warranty to the
original consumer purchaser to be free from
defects in material and workmanship.
• 5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
CCOOMMPPLLIIEESS WWIITTHH:
•
ASME A112 .18 .1 / CSA B125.1
•
ASME A112 .18 .2 / CSA B125.2
Indicates compliance to
ICC/ANSI A117.1
•
EPA Water Sense
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4C4
© 2011 Masco Corporation of Indiana
:
