52692-15-BG
52692-WH15-BG
Submitted Model No.: _____________________________________________
Specific Features: ________________________________________________
2 21/32"
(68 mm)

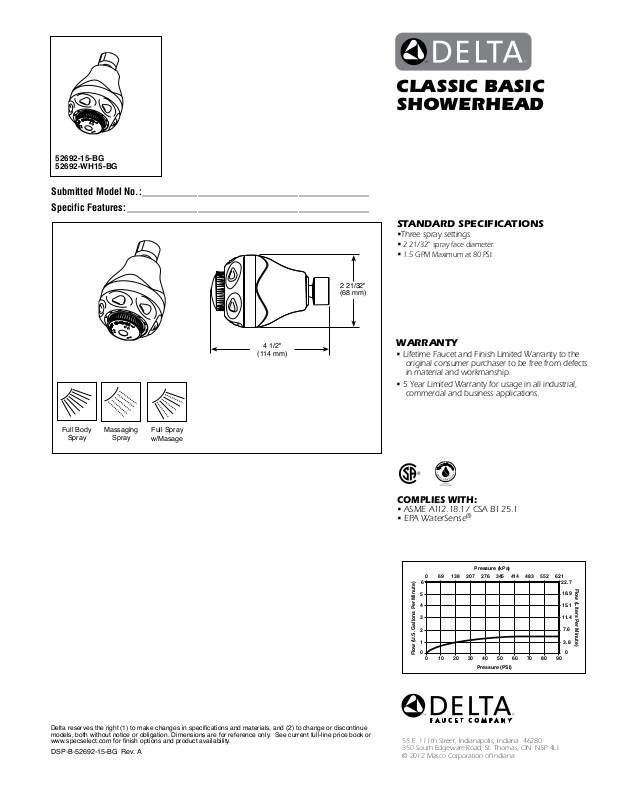

classic basic
showerhead
Standard SpecificationS
•Three spray settings
•
2 21/32" spray face diameter.
•
1.5 GPM Maximum at 80 PSI.
Full Body
Spray
Massaging
Spray
Full Spray
w/Masage
4 1/2"
(114 mm)
Warranty
• Lifetime Faucet and Finish Limited Warranty to the
original consumer purchaser to be free from defects
in material and workmanship.
• 5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
coMpLieS WitH:
•
ASME A112.18.1 / CSA B125.1
•
EPA WaterSense
069 138 207 276 345 414 483 552 621
6
5
4
3
2
1
0
Flow (U.S. Gallons Per Minute)
0102030405060708090
®
Pressure (kPa)
Pressure (PSI)
22.7
18.9
15.1
11.4
7.6
3.8
Flow (Liters Per Minute)
0
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.specselect.com for finish options and product availability.
DSP-B-52692-15-BG Rev. A
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2012 Masco Corporation of Indiana
