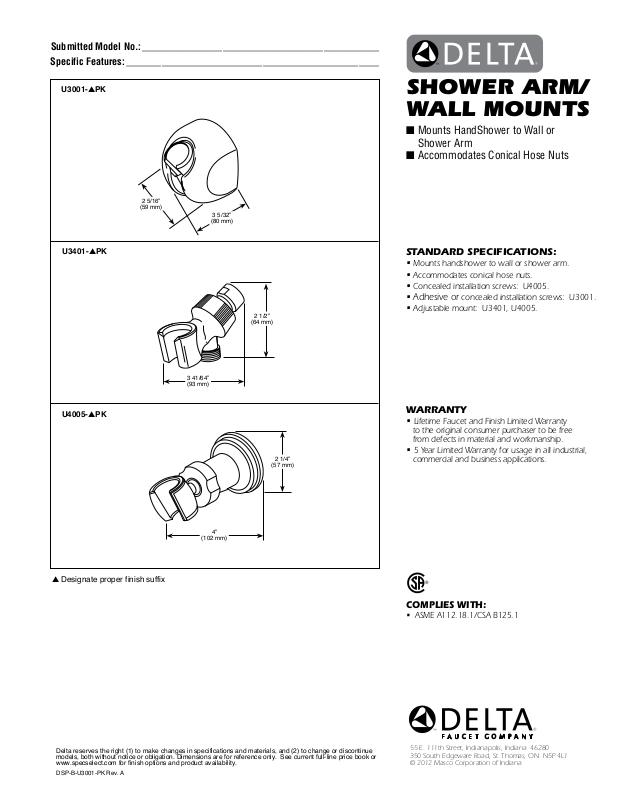

Page 1
Submitted Model No.: _______________________________________________
®
Specific Features: __________________________________________________
U3001-▲PK
U3401-▲PK
2 5/16”
(59 mm)
3 41/64”
(93 mm)
3 5/32”
(80 mm)
2 1/2”
(64 mm)
SHOWER aRm/
Wall mOUNTS
n Mounts HandShower to Wall or
Shower Arm
n Accommodates Conical Hose Nuts
STANDARD SPECIFICATIONS:
•
Mounts handshower to wall or shower arm.
•
Accommodates conical hose nuts.
•
Concealed installation screws: U4005.
• Adhesive or
•
Adjustable mount: U3401, U4005.
concealed installation screws: U3001.
U4005-▲PK
▲ Designate proper finish suffix
4”
(102 mm)
2 1/4”
(57 mm)
WARRANTy
•
Lifetime Faucet and Finish Limited Warranty
to the original consumer purchaser to be free
from defects in material and workmanship.
•
5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
COMPLIES WITH:
• ASME A112.18.1/CSA B125.1
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.specselect.com for finish options and product availability.
DSP-B-U3001-PK Rev. A
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2012 Masco Corporation of Indiana
