T11894▲
Submitted Model No.:
Specific Features:
4 1/2"
(114 mm)
4 1/2"
(114 mm)
Dia.
T11894
T11994▲
5"
(127 mm)
2 1/8"
(54 mm)
2 1/4"
(57 mm)
2 +3/4/-0"
(51 mm)
Supply
C/L Supply Line

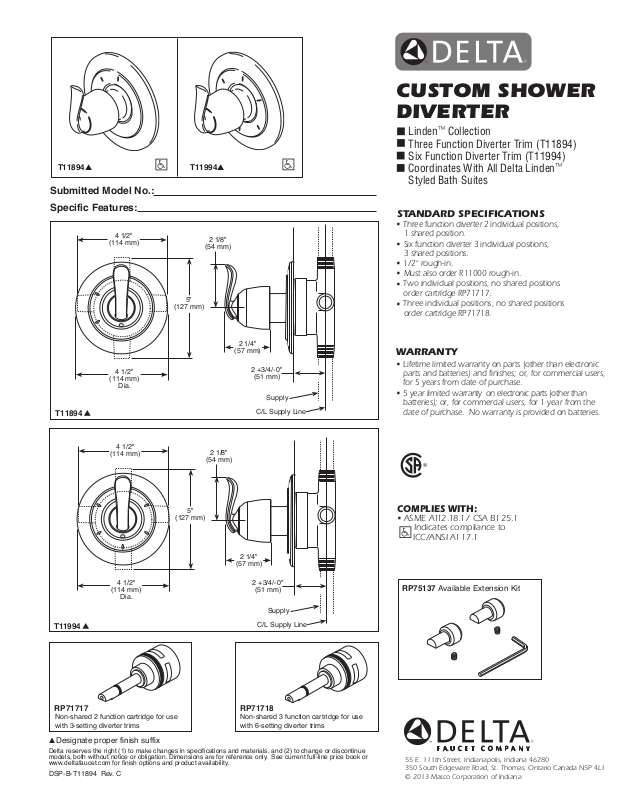

CUSTOM SHOWER
DIVERTER
Linden™ Collection
Three Function Diverter Trim (T11894)
Six Function Diverter Trim (T11994)
Coordinates With All Delta Linden
Styled Bath Suites
STANDARD SPECIFICATIONS
• Three function diverter 2 individual positions,
1 shared position.
•
Six function diverter 3 in
3 shared positions.
•
1/2" rough-in.
•
Must also order R11000 rough-in.
Two in
•
•
dividual positions, no shared positions
order
cartridge RP71717.
Three in
order
dividual positions, no shared positions
cartridge RP71718.
WARRANTY
• Lifetime limited warranty on parts (other than electronic
parts and batteries) and finishes; or, for commercial users,
for 5 years from date of purchase.
• 5 year limited warranty on electronic parts (other than
batteries); or, for commercial users, for 1 year from the
date of purchase. No warranty is provided on batteries.
dividual positions,
™
4 1/2"
(114 mm)
(127 mm)
4 1/2"
(114 mm)
Dia.
T11994
RP71717 RP71718
Non-shared 2 function cartridge for use
with 3-setting diverter trims
▲Designate proper finish suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T11894 Rev. C
2 1/8"
(54 mm)
5"
2 1/4"
(57 mm)
2 +3/4/-0"
(51 mm)
Supply
C/L Supply Line
Non-shared 3 function cartridge for use
with 6-setting diverter trims
®
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
Indicates compliance to
ICC/ANSI A117.1
RP75137 Available Extension Kit
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, Ontario Canada N5P 4L1
© 2013 Masco Corporation of Indiana
