Submitted Model No.: _______________________________________________
0
1
2
3
4
5
0102030405060708090
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
069 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow (Liters Per Minute)
Specific Features: __________________________________________________
57923 ▲
59210 ▲

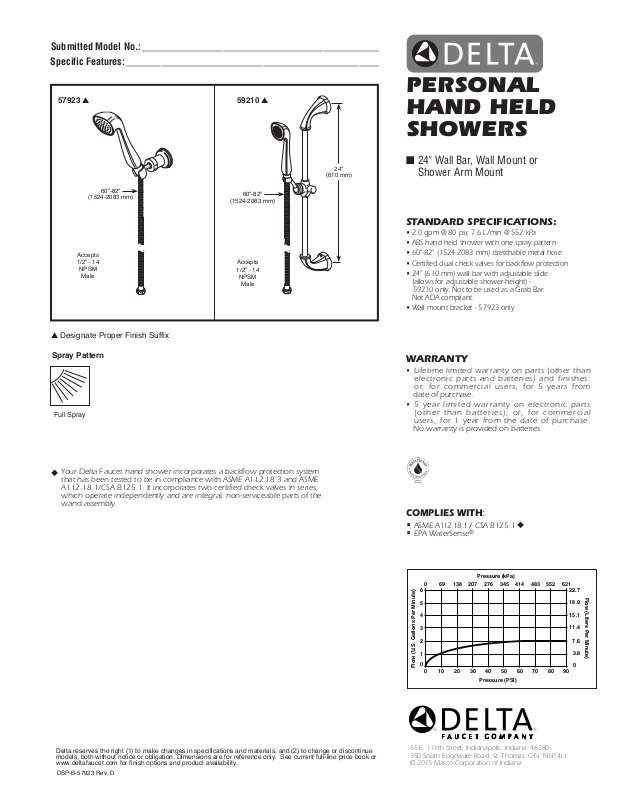

PERSONAL
HAND HELD
SHOWERS
60”-82"
(1524-2083 mm)
Accepts
1/2” - 14
NPSM
Male
▲ Designate Proper Finish Suffix
Spray Pattern
Full Spray
60”-82"
(1524-2083 mm)
Accepts
1/2” - 14
NPSM
Male
24”
(610 mm)
n 24" Wall Bar, Wall Mount or
Shower Arm Mount
STANDARD SPECIFICATIONS:
• 2.0 gpm @ 80 psi; 7.6 L/min @ 552 kPa
• ABS hand held shower with one spray pattern
• 60"-82” (1524-2083 mm) stretchable metal hose
• Certified dual check valves for backflow protection
• 24” (610 mm) wall bar with adjustable slide
(allows for adjustable shower height) -
59210 only. Not to be used as a Grab Bar.
Not ADA compliant.
• Wall mount bracket - 57923 only
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
Your Delta Faucet hand shower incorporates a backflow protection system
u
that has been tested to be in compliance with ASME A112.18.3 and ASME
A112.18.1/CSA B125.1. It incorporates two certified check valves in series,
which operate independently and are integral, non-serviceable parts of the
wand assembly.
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-57923 Rev. D
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
EPA WaterSense
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2015 Masco Corporation of Indiana
®
