Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
55030
55531
30”
(762 mm)
30”
(762 mm)
55041-▲-PK
55024
30”
(762 mm)
24”
(610 mm)
55083▲
29”
(737 mm)
55511-PK
24”
(610 mm)

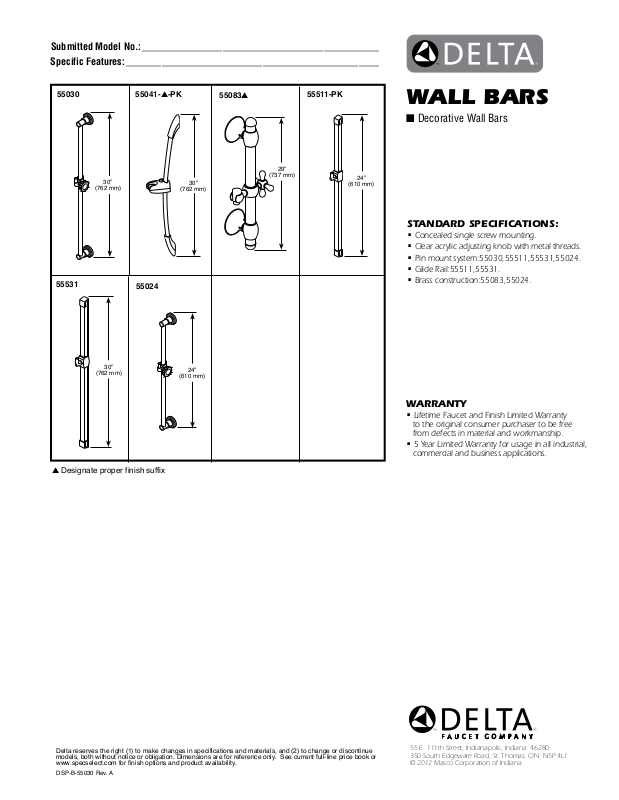

WALL BARS
n Decorative Wall Bars
StanDarD SPECIFICatIOnS:
•
Concealed single screw mounting.
•
Clear acrylic adjusting knob with metal threads.
•
Pin mount system:55030,55511,55531,55024.
•
Glide Rail:55511,55531.
•
Brass construction:55083,55024.
▲ Designate proper finish suffix
Warranty
•
Lifetime Faucet and Finish Limited Warranty
to the original consumer purchaser to be free
from defects in material and workmanship.
•
5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.specselect.com for finish options and product availability.
DSP-B-55030 Rev. A
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2012 Masco Corporation of Indiana
