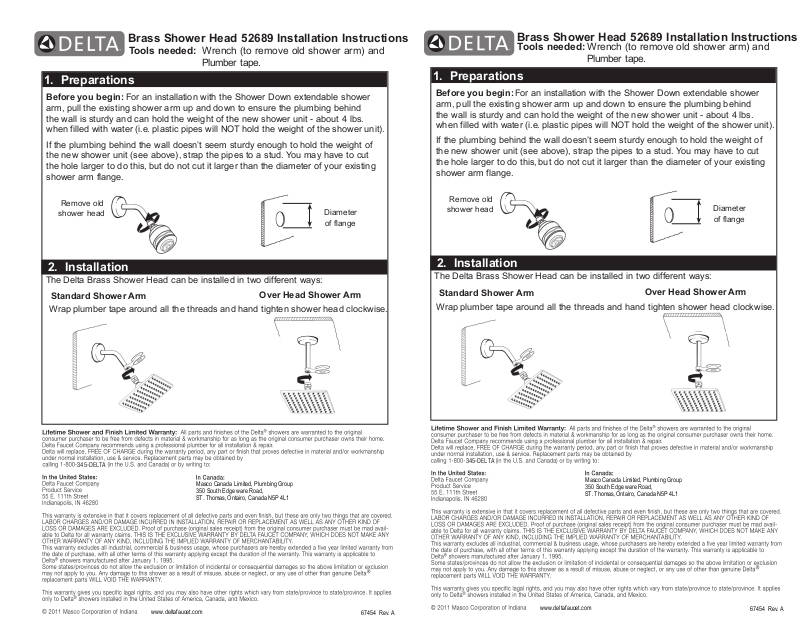

Brass Shower Head 52689 Installation Instructions

Tools needed: Wrench (to remove old shower arm) and

Plumber tape.

1. Preparations

Before you begin: For an installation with the Shower Down extendable shower

arm, pull the existing shower arm up and down to ensure the plumbing behind the wall is sturdy and can hold the weight of the new shower unit - about 4 lbs. when filled with water (i.e. plastic pipes will NOT hold the weight of the shower unit).

If the plumbing behind the wall doesn’t seem sturdy enough to hold the weight of the new shower unit (see above), strap the pipes to a stud. You may have to cut the hole larger to do this, but do not cut it larger than the diameter of your existing shower arm flange.

Brass Shower Head 52689 Installation Instructions

Tools needed: Wrench (to remove old shower arm) and

Plumber tape.

1. Preparations

Before you begin: For an installation with the Shower Down extendable shower

arm, pull the existing shower arm up and down to ensure the plumbing behind the wall is sturdy and can hold the weight of the new shower unit - about 4 lbs. when filled with water (i.e. plastic pipes will NOT hold the weight of the shower unit).

If the plumbing behind the wall doesn’t seem sturdy enough to hold the weight of the new shower unit (see above), strap the pipes to a stud. You may have to cut the hole larger to do this, but do not cut it larger than the diameter of your existing shower arm flange.

Remove old

shower head

Diameter of flange

2. Installation

The Delta Brass Shower Head can be installed in two different ways:

Standard Shower Arm

Wrap plumber tape around all the threads and hand tighten shower head clockwise.

345-DELTA

Masco Canada Limited, Plumbing Group 350 South Edge w are Road, ST. Thomas, Ontairo, Canada N5P 4L1

Over Head Shower Arm
