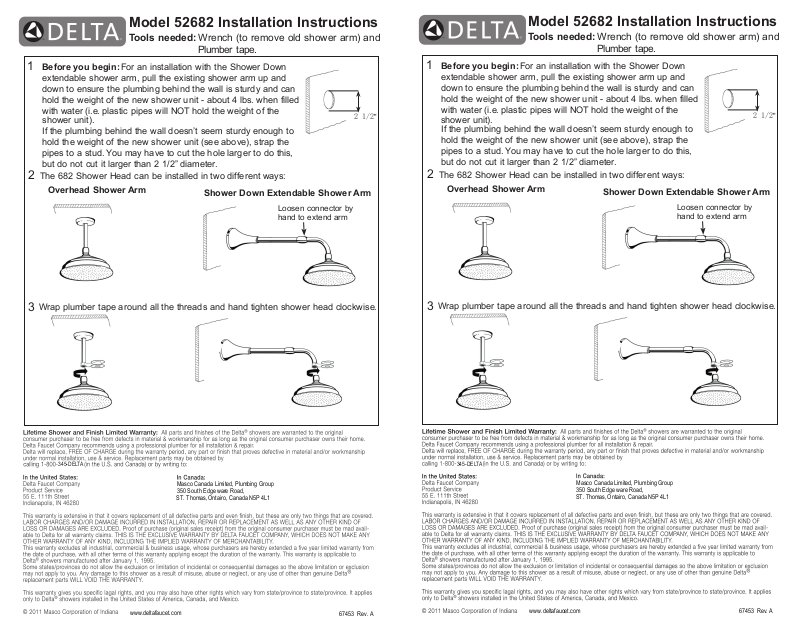

Model 52682 Installation Instructions
Tools needed: Wrench (to remove old shower arm) and
Plumber tape.
1
Before you begin: For an installation with the Shower Down
extendable shower arm, pull the existing shower arm up and
down to ensure the plumbing behind the wall is sturdy and can
hold the weight of the new shower unit - about 4 lbs. when filled
with water (i.e. plastic pipes will NOT hold the weight of the
shower unit).
If the plumbing behind the wall doesn’t seem sturdy enough to
hold the weight of the new shower unit (see above), strap the
pipes to a stud. You may have to cut the hole larger to do this,
but do not cut it larger than 2 1/2” diameter.
2
The 682 Shower Head can be installed in two different ways:
Overhead Shower Arm
Shower Down Extendable Shower Arm
Loosen connector by
hand to extend arm
2 1/2"
Model 52682 Installation Instructions
Tools needed: Wrench (to remove old shower arm) and
Plumber tape.
1
Before you begin: For an installation with the Shower Down
extendable shower arm, pull the existing shower arm up and
down to ensure the plumbing behind the wall is sturdy and can
hold the weight of the new shower unit - about 4 lbs. when filled
with water (i.e. plastic pipes will NOT hold the weight of the
shower unit).
If the plumbing behind the wall doesn’t seem sturdy enough to
hold the weight of the new shower unit (see above), strap the
pipes to a stud. You may have to cut the hole larger to do this,
but do not cut it larger than 2 1/2” diameter.
2
The 682 Shower Head can be installed in two different ways:
Overhead Shower Arm
Shower Down Extendable Shower Arm
2 1/2"
Loosen connector by
hand to extend arm
Wrap plumber tape around all the threads and hand tighten shower head clockwise.
3
345-DELTA
Masco Canada Limited, Plumbing Group
350 South Edge w are Road,
ST. Thomas, Ontairo, Canada N5P
4L1
Wrap plumber tape around all the threads and hand tighten shower head clockwise.
3
345-DELTA
Masco Canada Limited, Plumbing Group
350 South Edge w are Road,
ST. Thomas, Ontairo, Canada N5P 4L1
www.deltafaucet.com
67453 Rev. A
